Neexgent On Off Grid Energy Storage System 10kw 12kw Pv Power Hybrid Inverter 48v With 180a Mppt Controller

Neexgent High Quality 9bb Solar Panels 450w Half-cell Panels Solar 450w Mono Solar Panels

Type	Hybrid solar inverter
Max.Power	10KW-12KW
Output Voltage	EU And US Standard
Certificate	PSE, FCC, CE, UN38.3, Msds, UL, SAA And ROHS
Lead Time	10 Days
Payment	T/T, L/C,Western Union
Warranty	25 Years

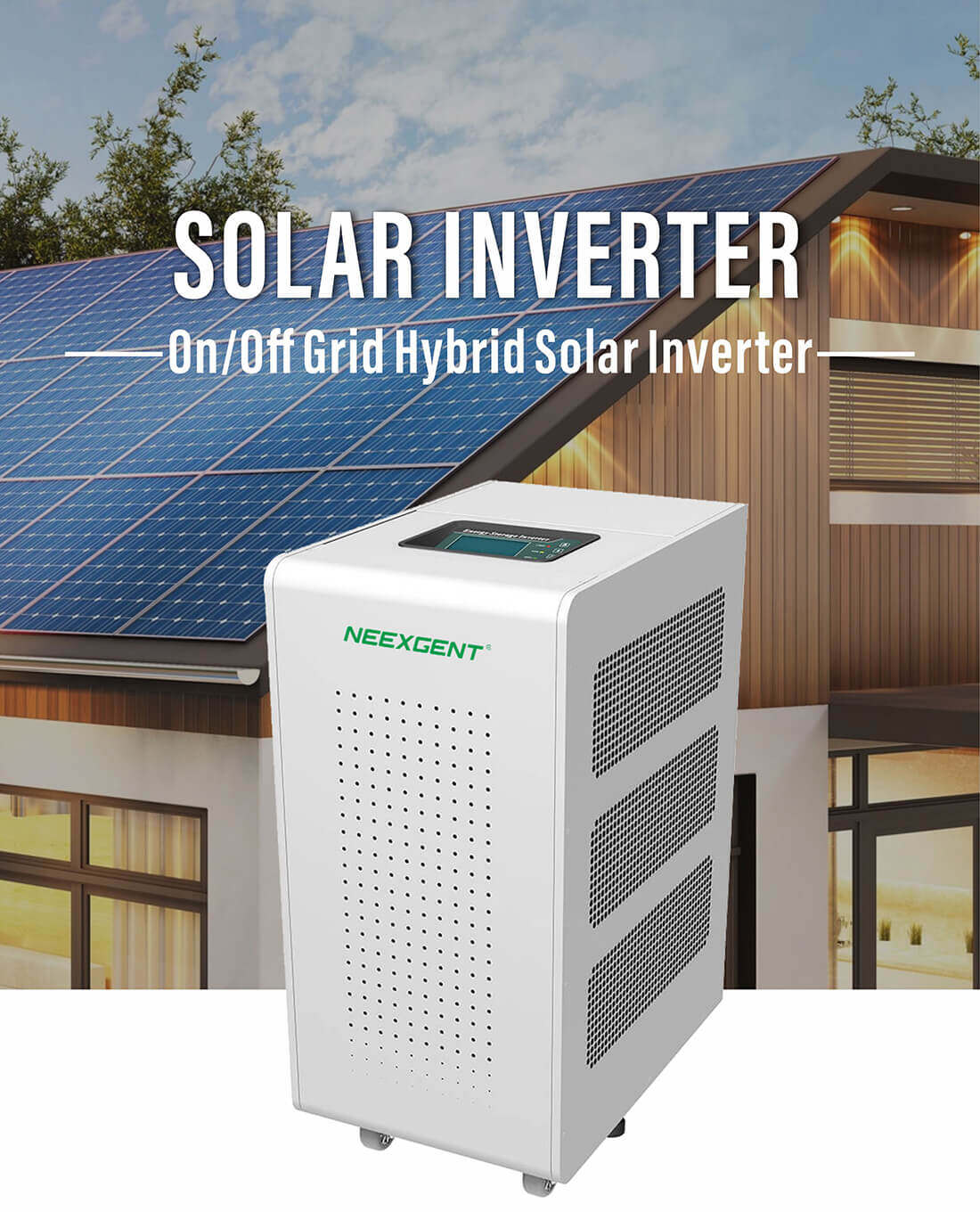

This model NG3000 Three-phase is a flexible and intelligent energy storage inverter which utilizes solar power,

utility power, and battery power source to supply continuous power. This is a multi-functional hybrid inverter

which can power all kinds of appliances in home or office environment, including motor-type appliances such

as tube light, fan, refrigerator and air conditioner. The system generates electricity when it has sufficient sunshine,

supplying power to your home and feeding any surplus power back to the Grid.

Product Features:

Rated power 10KW to 12KW
Smart LCD setting(Working modes, Charge Current, Charge Voltage, etc.)
Built-in MPPT 180A solar charge controller
MPPT Efficiency max 98%
Combining solar system, AC utility, and battery power source to supply continuous power
Multiple operations: basic Grid-tie, Off-Grid, Grid-Interactive
Support CAN, RS485 monitoring function

hybrid inverter price mpp solar hybrid inverter best hybrid inverter hybrid solar inverter price 10kva hybrid inverter

Tags:

MODEL		NG30-10048-T	NG30-12048-T
Nominal Battery System Voltage		48VDC
INVERTER OUTPUT	Rated output power	10000W	12000W
	Output wave	Pure sine wave
	Nominal output voltage	230 VAC (P-N) / 400 VAC (P-P)
	Nominal output current	14.3A per phase	17.4A per phase
	Nominal output frequency	50 Hz / 60 Hz
	Rate of wave distortion(THD)(Linearity loads)	Off grid≤2%; Grid discharge ≤3%; Grid charge ≤3%
	Peak efficiency	≥93%
	Overload capability	100% 125%
AC INPUT	AC input maximum current	26.0A per phase	34.8A per phase
	Nominal frequency	50Hz / 60Hz
	Acceptable input voltage range	Defaults 186Vac ~253Vac per phase;Narrow 174Vac ~272Vac per phase; Wide 95Vac ~272Vac per phase
BATTERY	Type of Battery	Lithium battery or lead-acid battery
	Nominal Voltage	48VDC
	Low Voltage Protection Point	Charger 34.0VDC; Inverter 40.0VDC
	Absorption Voltage	50.0VDC
	Refloat Voltage	54.8VDC
	Float Voltage	57.2VDC
SOLAR CHARGER & AC CHARGER	PV Open Circuit Voltage	145VDC
	Max Solar Charging Current	60A per channel
	Max AC Charging Current	60A per phase	80A per phase
	Max Charging Current	120A per phase	140A per phase
MECHANICAL SPECIFICATIONS	Mounting	Vertical
	Machine Dimension, WHD(mm)	392828629
	Package Dimensions (WHD)(mm)	5131031700
	Net Weight (kg)	133	140
	Gross Weight (kg)	128	160
OTHER	Communication terminal	RS485 / CAN bus
	Operation Temperature Range	0℃ ~ +50℃
	Environmental Protection Rating	IP20
	Ambient humidity	0 -- 90% relative humidity (non-condensing)
	Altitude	≤2000m
