Type |
Half-cut mono solar panels |
|
Max.Power |
540W |
|
Output Voltage |
EU And US Standard |
|
Lead Time |
10 Days |
|
Payment |
T/T, L/C,Western Union |
|
Warranty |
25 Years |
Comprehensive Certificates
●IEC61215,1EC61730
●IS09001:2015 Quality management systems
●IS045001:Environmental management systems
●IS045001:2018 Occupational health and safety

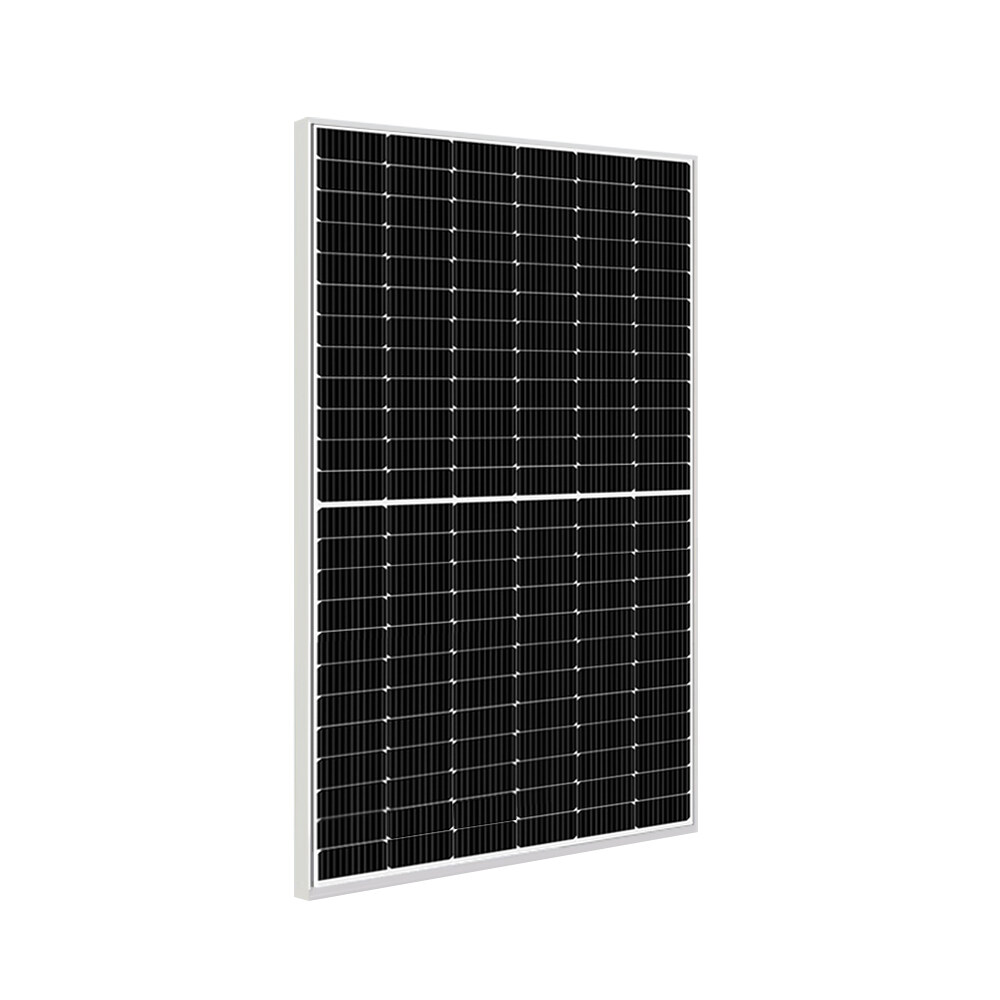

540w Half-Cut Mono Solar Panels:
Half Cell Module comprises two separated and identical solalr cell arrays, which means the ordinary strings of cells are cut into halves,
and these shorter strings compose which has separated current paths.
When a module is shaded, only one side shaded array's current will be impacted, while the other array will still be functionally producing
power. Under this circumstance, when a module is shaded, the affected working areas of Blade will be 50% less.
By cutting solar cell into halves, the internal power loss will be lower and hot spot effect will also be reduced.
Product Features:
Tags:
|
Specifications |
|
|
Solar Cel(Type/Size) |
MONO(182mm) |
|
Solar Cells Number |
144pcs(6*22) |
|
Dimensions |
2279x1134x35mm |
|
Weight |
28.5Kg/Pcs |
|
Structure |
3.2 Glass + EVA film + Back |
|
Frame |
Anodized Aluminum Alloy |
|
Junction Box |
IP68 3* Bypass Diode |
|
Cable Cross Section Size |
4.0mm2 ,(+ )300mm/(-)400mm |
|
Mechanical Load |
Front 5400Pa/Back 2400Pa |
|
Packing Number |
31Pcs/Pallet |
|
Packing Volume |
3.3720Cbm/Pallet |
|
40'HQ Container |
620Pcs |
|
Electrical Parameters at STC |
||||||
|
Module Type |
NGD525P |
NGD530P |
NGD535P |
NGD540P |
NGD545P |
NGD550P |
| Rate Maximum Power( Pmax/W) |
525 |
530 |
535 |
540 |
545 |
550 |
|
Module Efficiency(%) |
20.23 |
20.50 |
20.70 |
21.90 |
21.10 |
21.30 |
|
Open Circuit Volatge(Voc/V) |
48.95 |
49.15 |
49.35 |
49.55 |
49.75 |
49.95 |
|
Short Circuit Current(Isc/A) |
13.67 |
13.74 |
13.82 |
13.89 |
13.97 |
14.05 |
|
Voltage at Pmax(Vmp/V) |
41.10 |
41.27 |
41.45 |
41.62 |
41.80 |
41.97 |
|
Current at Pmax(Imp/A) |
12.78 |
12.85 |
12.91 |
12.98 |
13.05 |
13.11 |
|
Power Tolerance |
0~+5w |
|||||
|
Temperature Coefficent of Isc . |
+0.046%°C |
|||||
|
Temperature Coefficent of Voc |
-0.276%°C |
|||||
|
Temperature Coefficent of Pmax |
-0.350%°C |
|||||
|
STC |
Irradiance 1000W/m2 Cell Temperature 25°C AM1.5 |
|||||
|
Remark: Electrical data in this catalogue does not refer to a single module, and it's not part of the offer. It only serves for the comparison among different module types. |
||||||
|
Electrical Parameters at NOCT |
||||||
|
Module Type |
NGD525P |
NGD530P |
NGD535P |
NGD540P |
NGD545P |
NGD550P |
|
Rate Maximum Power( Pmax/W) |
396 |
400 |
404 |
407 |
411 |
414 |
|
Open Circuit Voltage(Voc.V) |
46.00 |
49.13 |
46.26 |
46.38 |
46.50 |
46.63 |
|
Short Circuit Current(Isc/A)) |
10.95 |
10.99 |
11.03 |
11.08 |
11.12 |
11.17 |
|
Voltage at Pmax(Vmp/V) |
38.35 |
38.55 |
38.76 |
38.95 |
39.16 |
39.31 |
|
Currrnt at Pmax(Imp/A) |
10.33 |
10.38 |
10.43 |
10.46 |
10.50 |
10.53 |
|
NOCT:Irradiance 800W/m Ambient Temperature 20°C Wind at 1m/S AM1.5 |
||||||
|
Operating Conditions |
|
|
Operating Temperature |
-40~+85°C |
|
Maximum System Voltage |
1500VDC |
|
NOCT |
45土2°C |
|
Fireproof Performance |
Glass C |
|
Maximum Series Fuse |
25A |
|
Temperature Coefficient of Voc |
-0.276%/K |
|
Temperature Coefficient of Isc |
+0.046%/K |
