Neexgent High Efficiency Solar Kit 8kw on off Grid Hybrid Solar Energy System for Home

Type

Hybrid

Max.Power

8000W

Output Voltage

EU And US Standard

Certificate

TUV, ISO, CE

Lead Time

10 Days

Payment

T/T, L/C,Western Union

Warranty

25 Years

8KW European Hybrid Solar System

The 8kw European Hybrid System, an energy model that integrates renewable and conventional energy sources, is driving a revolution in the energy sector in Europe. It aims to combine renewable and conventional energy sources organically to ensure economic growth while achieving environmental sustainability.



Solar panels (410W 182MBB all-black solar panels):
Solar panels are one of the core components in the 8kw European hybrid system. With the 410 Watt 182MBB all-black solar panel, it is able to efficiently convert solar energy into electricity. This high-performance solar panel not only offers excellent photovoltaic conversion efficiency, but also corrosion resistance, long life and high reliability, providing a sustainable and clean energy source for the 8kw European hybrid system.



Hybrid inverter (Deye SUN-5-12K-SG04LP3):
The Deye SUN-5-12K-SG04LP3 hybrid inverter is one of the key components of the 8kw European hybrid system. As a key link in the energy conversion process, the inverter converts the direct current generated by the solar panels into alternating current for use in the grid and in the home. With its high efficiency and stable power conversion capability, the hybrid inverter provides a reliable energy conversion solution for the European hybrid system.



Energy storage battery (NX-48200 wall-mounted battery):
Energy storage batteries play a vital role in the European hybrid system, the NX-48100 wall-mounted battery is a high-performance energy storage solution that stores excess solar power and releases it when needed. With its high capacity, long life and high security, this energy storage battery provides a stable energy reserve and regulation capability for the 8kw European hybrid system.



8kw hybrid solar power system8kw hybrid solar system price8kw on grid off grid hybrid solar system8kw on off grid system power hybrid solar system panels8kw hybrid grid solar system8kw hybrid solar system8kw off grid on grid and hybrid solar system8kw best hybrid solar system8kw hybrid solar pv system8kw hybrid solar system

Tags:



Product

Product Specification

MOQ

Quantity

Solar Inverter

8kw 3 phase hybrid inverter
1.Brand: Deye
2.Battery Voltage Range: 40-60v
3.Weight (kg): 33.6
4.Size (mm): 422W x 699.3H x279D
5.Protection Degree: IP65

1

1

Solar Panel

High Efficiency Monocrystalline
Solar Module 400-415W
Power: 410W
Cell number: 6*18
Size: 1722×1134×30mm
Weight: 21.5kg

1

20

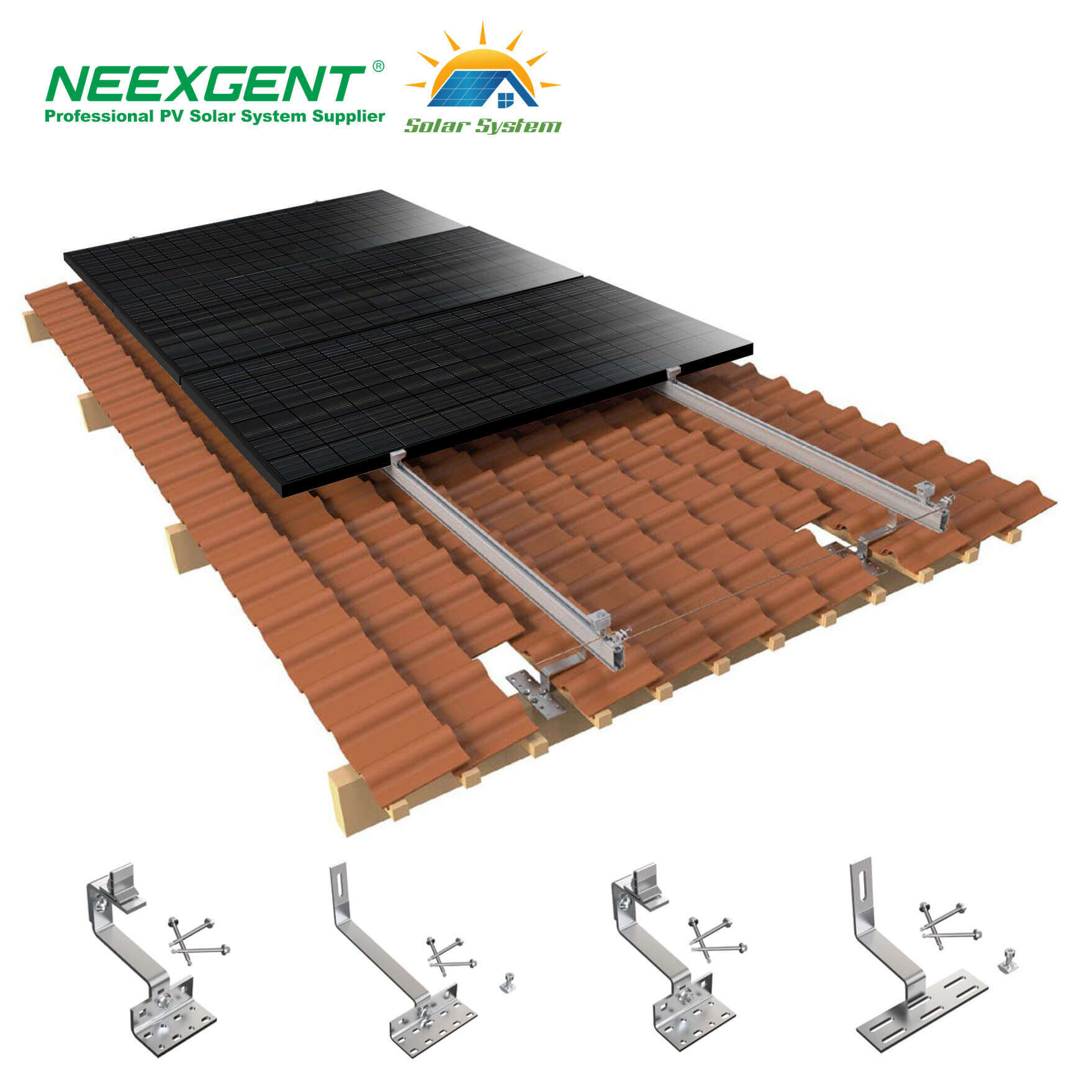

Bracket

Glazed tile roof bracket (Straight hook type)
Stainless steel bent hook, tapping screw, guide rail, Guide rail coupling, slide block nut, inside hexagonal bolts, medium press block, Side press block

1

1

Battery

Rated capacity: 200Ah
Rated energy: 10240Wh
Nominal voltage: 51.2V
Internal resistance: ≤40mΩ @1kHz AC
Standard charging voltage: 57.6V Recommended charging current: 20.0A Communication: RS485/RS232

1

1

Combiner Box 4 input 1 output
>4 PV string inputs with max current 40a
>With PV dedicated high voltage lightning protection device 20KA-40KA
>Waterproof terminals
>Lightning Protection,it can reduce solar cable

Cable&Accessory 4 mm2: PVC insulated, single core, Red Meters 30
4 mm2: PVC insulated, single core, Black Meters 30
1 1
