Neexgent 10kw Lithium Battery Lifepo4 48v 200ah Powerwall Battery in South Africa

48V HOME POWER WALL LIFEPO4 BATTERY

• High cycle life
≥6000 cycles @80% DoD for effectively lower total of ownership cost

• Longer service life
Low maintenance batteries with stable chemistry.

• Built in circuit protection
Battery Management System (BMS) is incorporated against abuse.

• Battery storage
up to 6 months thanks to its extremely low self
discharge (LSD) rate and no risk of sulphation.

• Quickly recharge
Save time and increase productivity with less down
time thanks to superior charge/discharge efficiency.

• Extreme heat tolerance
Suitable for use in a wider range of applications where
ambient temperature is unusually high: up to +60°C.

• Lightweight
Lithium batteries provide more Wh/Kg while also
being up to 1/3 the weight of its SLA equivalent.

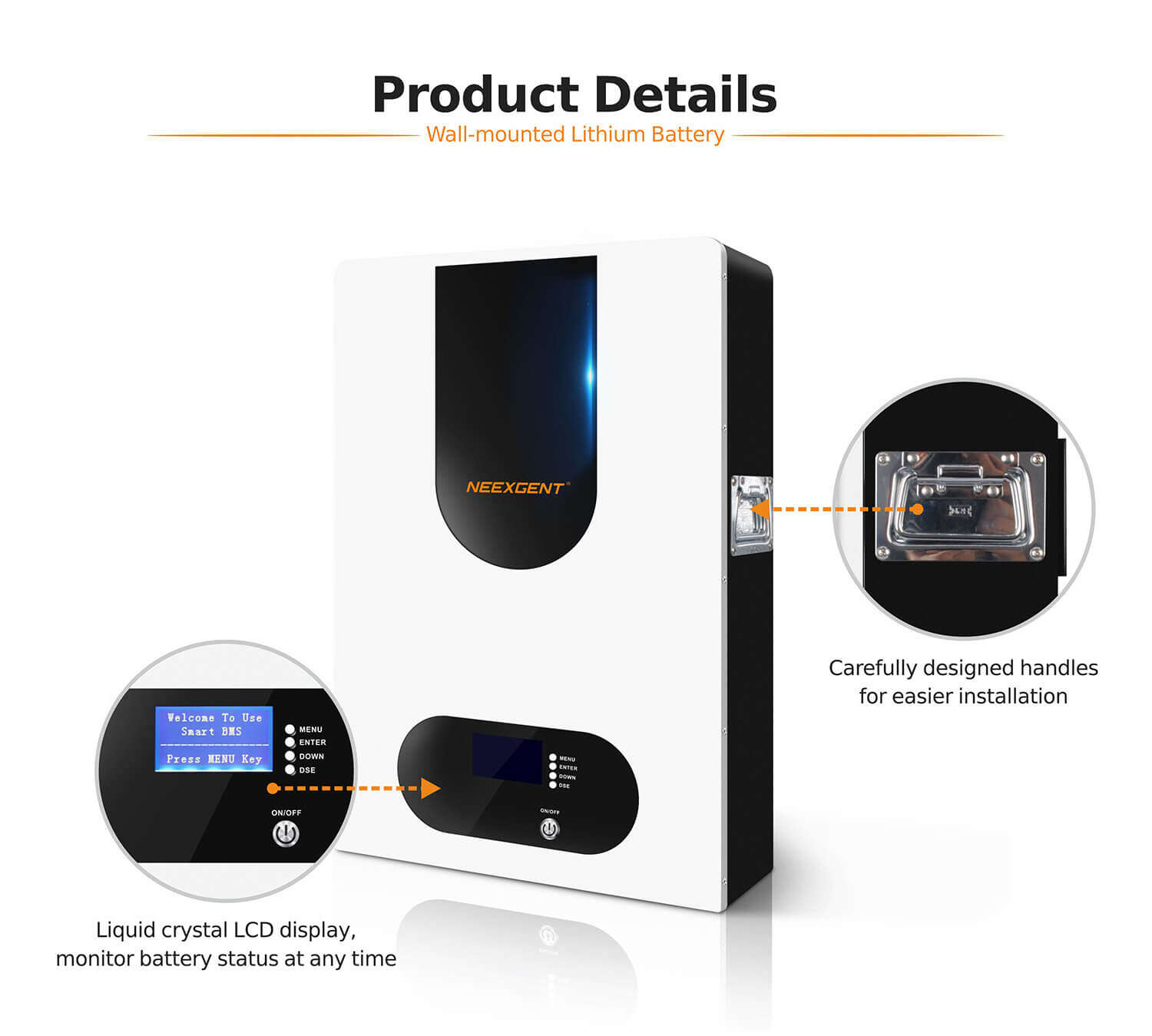

NX-48200 Wall-mounted Lithium Battery
**Power your home and electric vehicle with renewable energy you control and reduce your
   reliance on the grid.



**With solar, you typically generate more clean energy than you need. By combining with
   NX-48200, a rechargeable home battery, you can store excess energy from your solar
   panels for use anytime—even during a power outage.



**NX-48200 can detect a power cut, disconnect from the grid and automatically restore power
   to your home within a fraction of a second.


**With NX-48200 continuous power output, your home or business keeps running with little disruption.



  • Powerwall Solar Energy System for Home Use

Powerwall is the device with rechargeable lithium-ion battery for Home Solar Energy System. With its BMS Control, homeowners can generate and store their own energy, reducing their reliance on the power grid and increasing their energy independence.

  • Powerwall: Your Home Assistant for Solar Energy System

Powerwall can store excess solar energy generated during the day for use at night or during times of low solar production. 6000-cycle life increases the self-consumption of solar energy and reduces the amount of energy exported to the grid.

  • Design Your Own Powerwall: Lifepo4 Solar Battery with TUV

48v 100ah&200ah Powerwall for your suitable alternatives. It is supported to parallel Max. 15 devices in serices and design unique box.



10kw lithium battery10kw lithium batteryPowerwall BMSPowerwall Smart Communication10kw lithium batterysouth africa lithium batterysouth africa lithium batterysouth africa lithium batterysouth africa powerwall batterysouth africa powerwall batterysouth africa powerwall battery10kw lithium battery10kw lithium battery10kw lithium batterysouth africa powerwall battery

F&Q:

1. Does the powerwall support customized service?
A: Yes, it does. The powerwall is our unique product with patent design. It is supported to design the logo and color if you have need.



2. Are the batteries Grade A and brand new?
A: Yes, they are. We have CATL, BYD, CALB, EVE...All of our battery are Grade A and brand new battery. Please feel free to contact us and we will show QR code, specification and real photos for you.



3. What is the life expectancy of a Lithium battery?
A: The typical estimated life of the Lithium Iron Phosphate (LiFePO4) battery is 5-15 years, or 2000 to 8000 charge cycles. One charge cycle is a period of use from fully charged, to fully discharged, and fully recharged again.



4. Is the cells I bought balanced?
A: we know the importance of maintaining the consistency of each cell in the battery pack, so we will match and balance all cells to ensure that the internal resistance, voltage and capacity of cells are completely matched and balanced before delivery.  This process is very necessary



5. Except battery, do you also provide other assessories, for example Busbar, BMS?
A: Sure, we can supply the whole installation accessories of assembling battery, just feel free to contact us, we will match for you according to your need.



Tags:



ELECTRICAL PERFORMANCE

Nominal Voltage

48V

Nominal Capacity

200 Ah

Capacity @ 20A

300 min

Energy 10240 Wh
Communication CAN2.0/RS232/RS485
Resistance ≤45 mΩ @ 50% SOC

Efficiency

>96%
Module Parallel

Up to 15 packs



CHARGE PERFORMANCE

Recommended Charge Current

200A

Maximum Charge Current

200A

Recommended Charge Voltage

57.6V

BMS Charge Cut-Off Voltage

<58.4 V (3.65V/Cell)

Reconnect Voltage

>57.6 V (3.6V/Cell)

Balancing Voltage

<57.6 V (3.6V/Cell)

Maximum Batteries in Series

16 (*Consult Neexgent)



MECHANICAL PERFORMANCE

Dimension (L x W x H)

400 x 250 x 630mm

15.7” x 9.8” x 24.8”

Approx. Weight

198lbs (90kgs)

Terminal Type

DIN POST

Terminal Torque

80 ~ 100 in-lbs (9 ~ 11 N-m)

Case Material

METAL

Enclosure Protection

IP65



DISCHARGE PERFORMANCE

Maximum Continuous Discharge Current

200 A

Peak Discharge Current

205 A (3s)

BMS Discharge Cut-Off Current

250 A  (300ms)

Balancing open voltage

55.2V (3.45V/Cell)

Recommended Low Voltage Disconnect

44 V (2.75V/Cell)

BMS Discharge Cut-Off Voltage

>32.0V (2s) (2.0V/Cell)

Reconnect Voltage

>40.0 V (2.5V/Cell)

Short Circuit Protection

250 ~ 500 μs



TEMPERATURE PERFORMANCE

Discharge Temperature

-4 ~ 131 ºF (-20 ~ 55 ºC)

Charge Temperature

-4 ~ 113 ºF (0 ~ 45 ºC)

Storage Temperature

23 ~ 95 ºF (-5 ~ 35 ºC)

BMS High Temperature Cut-Off

149 ºF (65 ºC)

Reconnect Temperature

131 ºF (55 ºC)



HEATING FOIL PERFORMANCE

Heating Temperature Range

-4 to 41 ºF (-20 to 5 ºC)

Heating Time

Approximately 1 hour @ 7.5 A

BMS Heating Foil Cut-Off

158 ºF (70 ºC)



OUTLINE DIMENSION

L mm(”)

W mm(”)

H mm(”)

400(15.7)

250 (9.85)

630 (24.8)



power wall LiFePO4 battery
