Solar energy systems have become a fundamental part of the green energy revolution, offering a sustainable way to power homes and businesses. One of the critical components that contribute to the performance and safety of a solar power system is the connector used to link solar panels to the inverter and other parts of the system. These connectors are vital for ensuring efficient and reliable energy transmission. In this article, we will explore the different types of solar panel connectors, their features, and how to choose the best one for your system.
Solar panel connectors are used to establish the electrical connections between various components of a solar energy system, including solar panels, inverters, batteries, and charge controllers. A high-quality connector ensures that electricity flows smoothly from the solar panels to the inverter, where it is then converted into usable power for a home or business.
Selecting the appropriate connector is crucial for the safety and efficiency of the entire solar power system. The connector must be durable enough to withstand harsh weather conditions, handle the electrical load, and be easy to install and maintain.

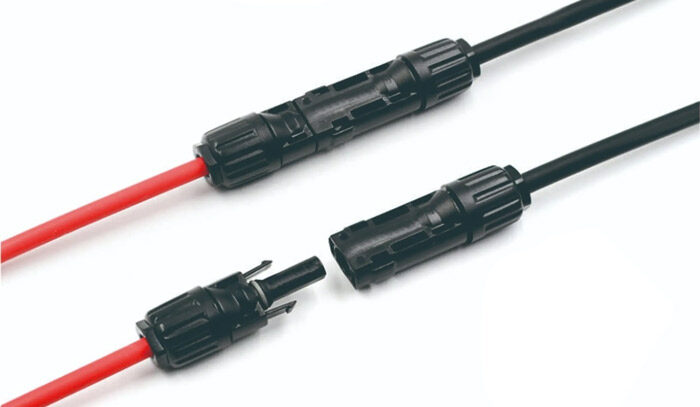

The MC4 connector is by far the most widely used connector in the solar industry. Designed by Multi-Contact, the MC4 connector is used for connecting solar panels in series and ensuring safe, reliable electrical connections.
Features:
Durability: MC4 connectors are known for their durability and ability to withstand extreme environmental conditions, including temperature variations, rain, and dust.
Safety: They feature a locking mechanism that ensures a secure connection and reduces the chances of accidental disconnection.
Compatibility: MC4 connectors are standard for most solar panel installations and are compatible with nearly all solar panels.
Advantages:
Easy to install with a quick-lock mechanism.
High resistance to environmental factors such as UV rays and humidity.
IP67 waterproof rating, making them suitable for outdoor use.
Applications:
MC4 connectors are commonly used in residential and commercial solar installations, especially for systems where multiple panels are connected in series.

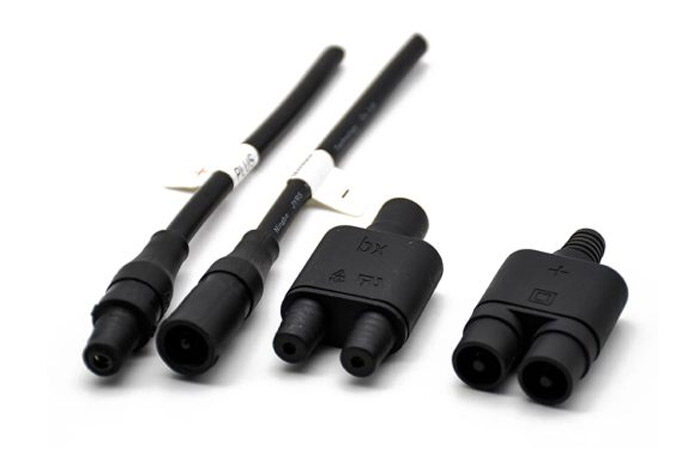

The MC3 connector is an earlier version of the MC4, but it is still used in some older solar panel systems. Like the MC4, it’s designed for photovoltaic (PV) systems, but it lacks the more advanced locking mechanism found in the MC4 connectors.
Features:
Basic Design: MC3 connectors feature a simple plug-and-play design that allows for quick installation.
Lower Voltage Rating: Typically, MC3 connectors are rated for up to 600V DC, which is lower than the 1000V rating of MC4 connectors.
Advantages:
Low-cost solution for older systems.
Simple to install with a push-in mechanism.
Applications:
MC3 connectors are used in older solar systems and are less common in modern installations.

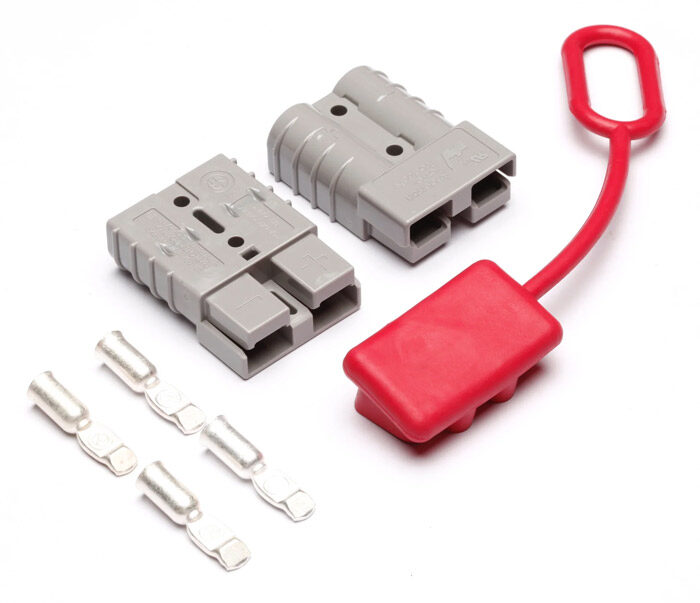

Anderson Powerpole connectors are frequently used in solar energy applications where modular connections are needed. They are particularly useful for low-voltage DC connections and can be used in both residential and commercial systems.
Features:
Modular Design: Anderson connectors are modular, meaning you can combine multiple connectors to meet the needs of the system.
High Current Capacity: These connectors are ideal for high-current applications, typically up to 15-100A.
Color Coding: The connectors are available in various colors, which helps identify different voltages or systems within a solar power setup.
Advantages:
High current handling capability.
Versatile and reusable.
Can be used in various electrical configurations.
Applications:
Anderson Powerpole connectors are used in off-grid solar systems, portable solar setups, and other modular solar configurations.

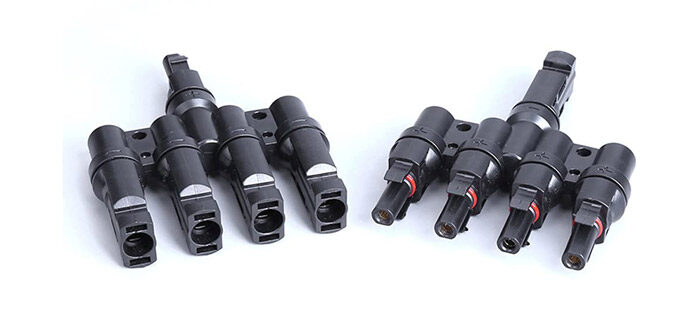

T4 connectors are another type of connector used in solar installations, particularly for commercial-scale systems. T4 connectors are larger and more robust compared to MC4 connectors, making them suitable for high-power and high-voltage solar arrays.
Features:
Large Size: T4 connectors are larger than MC4 connectors, designed to handle higher power capacities.
Reliable Connection: They are designed for high-current applications, ensuring long-term, stable connections.
Weather Resistance: T4 connectors are designed to withstand extreme environmental conditions such as high humidity, heat, and salt air.
Advantages:
High durability and reliability.
Capable of handling larger, more powerful solar arrays.
Secure, weather-resistant connection.
Applications:
T4 connectors are typically used in large-scale commercial solar power systems, where high-voltage and high-current capacity is required.
While MC4 connectors are the most popular, there are a few other types and accessories used in solar installations:

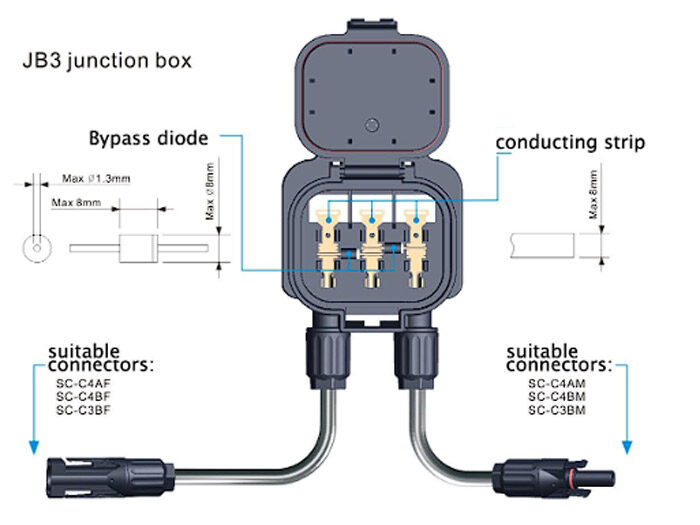

Solar Junction Boxes: These are used to house the connectors for solar panels. They protect the electrical connections from dust, water, and mechanical stress.
Bypass Diodes: These are used to prevent energy loss in case of shading. They are often built into the junction box of solar panels and can be part of the connector system.
PV Cable: In addition to connectors, the cables that run between solar panels and the inverter play a crucial role in the system’s efficiency. They need to be specifically rated for use in PV systems to ensure safety and performance.
When selecting connectors for your solar system, consider the following factors:
Voltage Rating: Ensure that the connector can handle the voltage output of your solar panels. Most modern systems use MC4 connectors, which can handle up to 1000V.
Current Rating: The connectors must be capable of handling the current generated by the solar panels. Select connectors with an appropriate amperage rating to prevent overheating and power loss.
Environmental Conditions: Consider the climate in which your solar panels will be installed. Connectors should be resistant to UV radiation, water, and dust. Look for IP67-rated connectors for outdoor installations.
Ease of Installation: Quick-lock or snap-on connectors, like MC4, make installation faster and more secure, reducing the likelihood of improper connections.
System Size: Large-scale solar systems require connectors that can handle high current and voltage. Commercial systems often use T4 connectors or other industrial connectors designed for high power.
Solar panel connectors are essential components for creating a reliable and efficient solar power system. Choosing the right type of connector ensures safe, secure, and optimal power transmission between solar panels, inverters, and other components. Whether you are installing a small residential solar system or a large commercial array, understanding the different types of connectors and their features will help you make the best choice for your needs.
Selecting the correct solar panel connector is essential to maximize system performance, ensure safety, and extend the lifespan of your solar power installation. By considering factors such as voltage and current ratings, environmental resistance, and ease of installation, you can confidently choose the best connector for your solar project.
The most commonly used connectors in residential solar systems are MC4 connectors. They are widely used due to their durability, weather resistance, and ability to handle high voltages. MC4 connectors are easy to install, secure, and reliable, making them ideal for home solar installations.
Solar panel connectors play an important role in maintaining the efficiency of the solar power system. A poor connection can result in energy losses due to resistance, which may lower the overall efficiency of the system. Proper installation and quality connectors ensure minimal energy loss and maintain optimal power output.
It is generally not recommended to mix different types of connectors (e.g., MC4 with Anderson Powerpole) in the same solar system, as it can cause compatibility issues. It is best to use connectors that are designed for your specific system, as using mismatched connectors can result in poor performance and potential safety hazards.
Yes, most solar panel connectors, especially MC4 connectors, are designed to be waterproof. These connectors are rated with an IP67 or higher waterproof rating, meaning they are sealed against water and dust ingress. This ensures they function reliably even in wet weather conditions, which is essential for outdoor solar installations.
When selecting connectors for a commercial solar system, you should consider factors like voltage rating, current capacity, environmental resistance (UV, salt, and weather), and the scalability of the connectors for larger systems. Additionally, ensure that the connectors meet the required standards and certifications for high-performance commercial installations.
