The 18650 lithium-ion battery is one of the most widely used battery formats across a wide range of applications, including laptops, electric vehicles (EVs), power tools, and energy storage systems. The number “18650” denotes the dimensions of the cylindrical cell: 18mm in diameter and 65mm in length. While the physical dimensions of 18650 cells are standardized, the chemistry inside can vary significantly, particularly with respect to the cathode material.

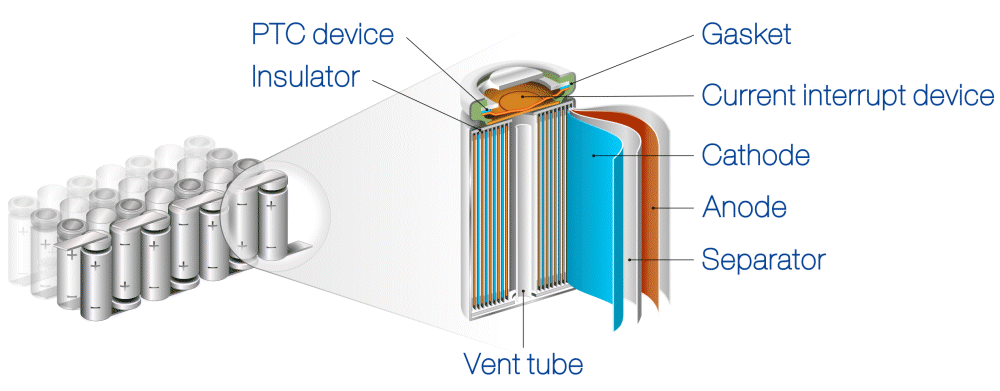

The cathode (positive electrode) is a critical component of any lithium-ion battery, as it directly impacts the battery’s energy density, voltage, thermal stability, lifespan, and safety. Over the years, several cathode chemistries have emerged for use in 18650 cells, each offering different performance characteristics suitable for varying applications. In this article, we will explore the most common cathode materials used in 18650 batteries, analyze their characteristics, and visualize their performance comparison using a chart.

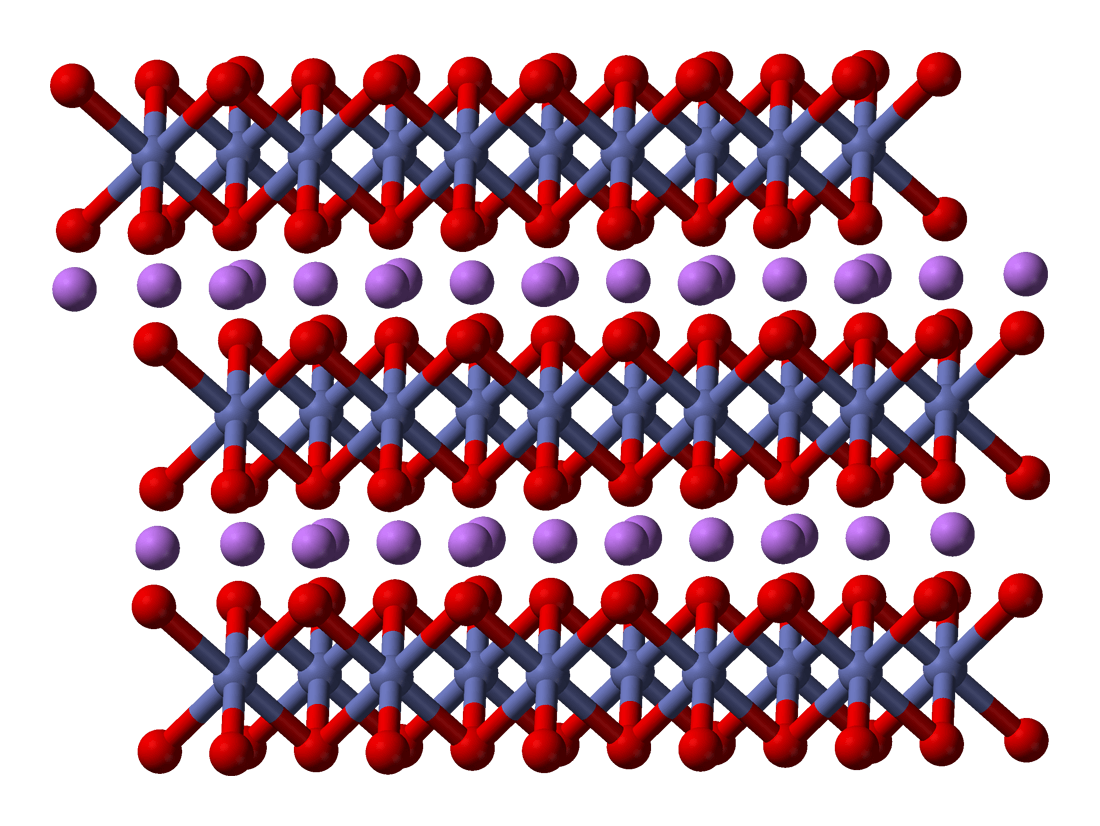

LCO was one of the first cathode materials used in commercial lithium-ion batteries. It offers high energy density, making it ideal for applications where space is limited and high capacity is required. However, it suffers from relatively short cycle life and poor thermal stability, which limits its use in high-power or high-temperature environments.
Lithium Iron Phosphate (LFP)
LFP batteries are known for their excellent thermal and chemical stability. They have lower energy density than cobalt-based cathodes but offer significantly longer cycle life and enhanced safety. LFP is commonly used in electric buses, power tools, and stationary energy storage where durability and safety are paramount.
Lithium Manganese Oxide (LMO)

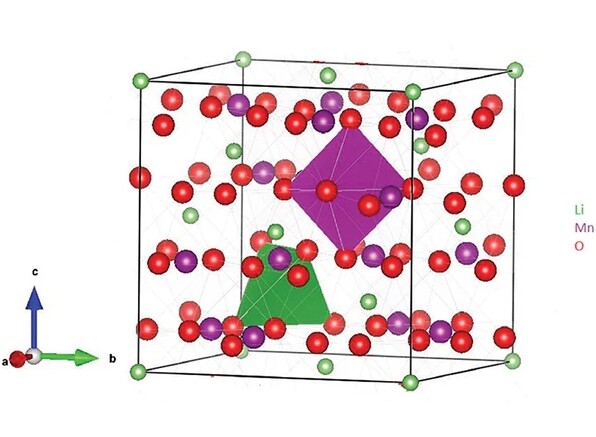

LMO offers high thermal stability and low internal resistance, which translates into good high-current performance. However, its cycle life is shorter, and it generally has lower capacity than other chemistries. It is often used in combination with other cathode materials to enhance stability and performance.
Nickel Manganese Cobalt Oxide (NMC)
NMC cathodes have become extremely popular due to their well-balanced performance across energy density, lifespan, and safety. Different ratios of nickel, manganese, and cobalt can be tailored to optimize specific properties. NMC is widely used in electric vehicles and grid-scale energy storage systems.
Nickel Cobalt Aluminum Oxide (NCA)
NCA is similar to NMC but substitutes aluminum for manganese. It offers one of the highest energy densities available in lithium-ion chemistry and good cycle life, but it is less stable thermally than LFP or LMO. It is primarily used in premium electric vehicles, such as Tesla models, and high-performance applications.
To better visualize how the different cathode materials perform relative to one another, the following line chart compares three critical parameters: energy density (measured in Wh/kg), cycle life (number of charge-discharge cycles), and nominal voltage. These factors directly affect battery selection for various applications, from consumer electronics to electric vehicles. The chart provides a clear overview of how each material balances power, longevity, and voltage output.
While energy density, cycle life, and nominal voltage are essential metrics, other real-world performance indicators also heavily influence material selection for 18650 cells. These include fast charging capabilities, high discharge rates, temperature stability under load, cost-efficiency, and environmental impact.
Fast Charging and High Discharge Rate
Applications such as power tools and electric vehicles require batteries capable of delivering high current rapidly. Similarly, consumer demand for fast charging means cathode materials must support higher charge currents without degrading.
Cathode Material
Fast Charging Capability
High Discharge Capability
LCO
Low to Moderate
Low to Moderate
LFP
High
High
LMO
High
High
NMC
Moderate to High
Moderate to High
NCA
Moderate to High
High
LFP and LMO are leaders in fast charging and high-current discharge. This makes them suitable for high-load conditions like power tools and bus fleets.
LCO, while offering high energy density, is less suitable for fast charging, limiting its use in devices with high-power demands.
Safety is crucial in battery chemistry selection, particularly for use in EVs, aviation, and residential storage systems.
LFP is regarded as the safest due to its strong thermal stability and resistance to thermal runaway.
LMO also offers decent safety under high current loads.
LCO, NMC, and NCA, while safe with proper battery management systems (BMS), are more prone to overheating and require advanced thermal protection mechanisms.
As global lithium-ion battery production scales, the sustainability and ethical sourcing of cathode materials are under increasing scrutiny.
Cobalt, used heavily in LCO, NMC, and NCA, poses ethical and geopolitical challenges due to limited supply and environmental damage associated with mining, particularly in the Democratic Republic of the Congo.
LFP is free from cobalt and nickel, making it more environmentally friendly and politically stable to source.
LMO offers a partial solution with lower cobalt dependency.
The choice of cathode material in 18650 lithium-ion batteries is a pivotal factor that defines the performance, safety, cost, and sustainability of the final product. Each of the five mainstream materials—LCO, LFP, LMO, NMC, and NCA—offers distinct advantages tailored to specific use cases.
LCO delivers high energy density and stable output, making it ideal for compact electronics but less suited for high-power or long-life applications.
LFP stands out with exceptional safety, long cycle life, and low cost, positioning it as a leader in energy storage systems, commercial EVs, and industrial tools.
LMO provides high-rate capabilities and decent thermal performance, often serving in hybrid configurations to balance other chemistries.
NMC offers a versatile, well-rounded option for EVs and grid storage, while NCA leads in energy density, powering demanding applications such as Tesla vehicles and aerospace systems.
As market demands evolve, there's a clear shift toward cobalt-free and high-nickel formulations, along with rising interest in solid-state and nanostructured cathodes. However, in the foreseeable future, LFP and NMC are expected to dominate due to their robust performance profiles and growing manufacturing support.
Ultimately, understanding the trade-offs among cathode materials allows manufacturers, engineers, and consumers to make informed choices that align with their technical, economic, and environmental priorities. The 18650 cell, though mature in form, continues to adapt in function—driven largely by innovation at the material level.
NMC and NCA are the most widely used in electric vehicles due to their high energy density and good cycle life. LFP is gaining popularity, especially in commercial EVs and affordable models, because of its safety and long lifespan despite lower energy density.
LFP has excellent thermal and chemical stability. It is less prone to thermal runaway or combustion under stress, overcharging, or physical damage, making it a preferred choice for applications where safety is paramount, such as home energy storage or public transit.
The numbers refer to the ratio of Nickel:Manganese:Cobalt in the cathode material. For example, NMC 811 contains 80% nickel, 10% manganese, and 10% cobalt. Higher nickel increases energy density, while manganese and cobalt help stabilize the structure and improve safety.
Yes, in some cases. Hybrid systems may combine cells with different chemistries (e.g., LMO with NMC) to optimize for both power and energy storage. However, careful battery management is required to handle differences in voltage, charging behavior, and thermal characteristics.
LFP is generally considered the most environmentally friendly because it avoids cobalt and nickel—two metals linked to environmental degradation and ethical mining concerns. It is also widely recyclable and made from abundant raw materials.
