Type |
Off Gird |
|
Max.Power |
3000W |
|
Output Voltage |
EU And US Standard |
|
Certificate |
TUV, ISO, CE |
|
Lead Time |
10 Days |
|
Payment |
T/T, L/C,Western Union |
|
Warranty |
25 Years |

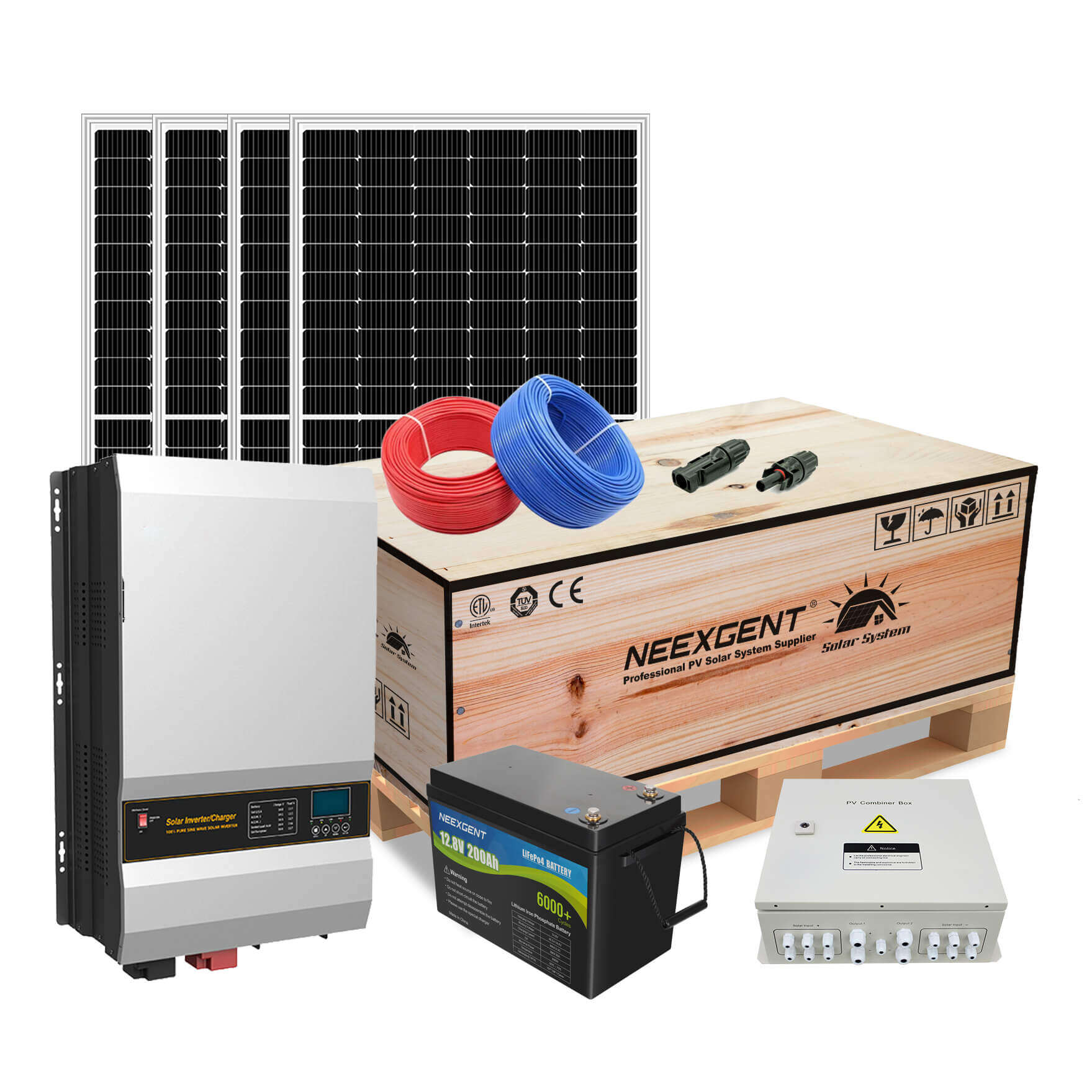

3KW OFF-GRID SOLAR SYSTEM
Neexgent Energy Storage System 3kw Powerwall Off Grid Inverter Solar System Lithium Battery For Home Use
**Working for the residential community,remote village and small house and soon.
**Providing stable electricity power by renewable energy from PV.
**When the utility is abnormal, the BSS runs in off-grid mode and provides sta ble power for load.
.jpg)
Tags:
|
No. |
Product |
Spec Description |
Qty |
|
1 |
PV18-3024 PRO Inverter |
Default Battery System Voltage:48VDC Rated Power: 3000VA \ 3000W Voltage: 230VAC Maximum PV Array Open Circuit Voltage:150VDC Maximum Solar Charge Current: 60A Package Dimensions (W*H*D)(mm): 485*393*251 Gross Weight(kg): 7.4 |
1 |
|
2 |
Mono Perc Solar Panel |
Power:450W Cell range: JA solar cell 6*20(182*91mm) Size：1909*1134*35mm Pallet size：1910*1150*1300mm Material: 3.2mm |
7 |
|
3 |
Lithium battery pack energy storage (25.6V200AH) |
1.Type:NG04S200A(25.6V200AH) 2.charging voltage: 29.2V 3.Working Voltage: 21V-29.2V 4.Charging Current: MAX 0.5C 5.CA:MAX 200A 6.Norminal Power: 5120w 7.Weight: KG 8.Size: 532*207*215mm L*W*H(H) 9.Temperatue: (-30℃～75℃) |
1 |
|
4 |
AC circuit breaker |
20a |
2 |
|
5 |
DC circuit breaker |
125A |
1 |
|
6 |
Combine box |
2 INPUT+2 OUT PUT |
1 |
| 7 | Solar panel connecter | MC4 | 1 Set |
| 8 | Roof mount accessories | 1 Set |
