Neexgent Solar Inverter Hybrid Systems 15kw Off Grid Hybrid Inverter Solar Energy System

Type

Off Gird

Max.Power

15000W

Output Voltage

EU And US Standard

Certificate

TUV, ISO, CE

Lead Time

10 Days

Payment

T/T, L/C,Western Union

Warranty

25 Years

15KW OFF-GRID SOLAR SYSTEM

Neexgent Solar Off grid Power System Home 15KW Solar Energy Panel Set for Household Appliances Commercail Industrial Use

**Working for the residential community,remote village and small house and soon.

**Providing stable electricity power by renewable energy from PV.

**When the utility is abnormal, the BSS runs in off-grid mode and provides sta ble power for load.

15kw off grid power15kw off grid system15kw off grid solar power systemoff grid solar system for salebest off grid solar panelsoff grid cabin solar kitoff grid solar kits with batteries15kw off grid solar panel kit15 kw off grid solar system priceoff grid on grid and hybrid solar system

Tags:



No.

Product

Spec Description

Qty

1

MKSII-5K
5000W230VAC
48VDC  80A
MPPT 48V80A
4500W
MKS II Series
*Off Grid Hybrid Solar Inverter
*Inbuilt MPPT solar controller 80A
* Power Factor=1
* MPPT Volatge range: 120V-430V
* These inverters can work without batteries when    there is the sun.Can parallel operation 9units

3

2

Half cell MONO 450W
Solar panel(120)
Power:450W
Cell range: JA solar cell 6*20(182*91mm)
Size:1909*1134*35mm
Packing:31pcs/pallet
Pallet size:1910*1150*1300mm
Material: 3.2mm high transittance low iron tempered glass+High effiency solar cells+EVA+TPT,Aluminium frame
Junction box+MC4 cable

38

3 Lithium battery powerwall energy storage
(51.2V 100AH)

Rated capacity :100.0Ah

Rated energy :5120Wh

Nominal voltage :51.2V

Internal resistance :≤40mΩ @1kHz AC

Standard charging voltage :57.6V

Recommended charging current :20.0A

Maximum continuous charging current :50.0A

Standard discharge current :50.0A

Maximum continuous discharge current :100.0A

End-of-discharge voltage :44.0V

Communication :RS485/RS232

Cycle life :≥4000 times (0.2C charge/discharge) 70%DOD

Charging :0~50℃

Discharge :-10~60℃

Shipping voltage: ≥51.2V

1

4

Lithium battery powerwall energy storage
(51.2V200AH)

Rated capacity :200Ah

Rated energy :10240Wh

Nominal voltage :51.2V

Internal resistance :≤40mΩ @1kHz AC

Standard charging voltage :57.6V

Recommended charging current :20.0A

Maximum continuous charging current :50.0A

Standard discharge current :50.0A

Maximum continuous discharge current :100.0A

End-of-discharge voltage :44.0V

Communication :RS485/RS232

Cycle life :≥4000 times (0.5C charge/discharge) 70%DOD

Charging :0~50℃

Discharge :-10~60℃

Shipping voltage: ≥51.2V

1

5

AC circuit breaker


80A 2 Set

6

DC circuit breaker 250A 1 Set
7 Combine box 7 INPUT+2 OUT PUT 2 Set
8 Solar panel connecter MC4 14
9 Cables

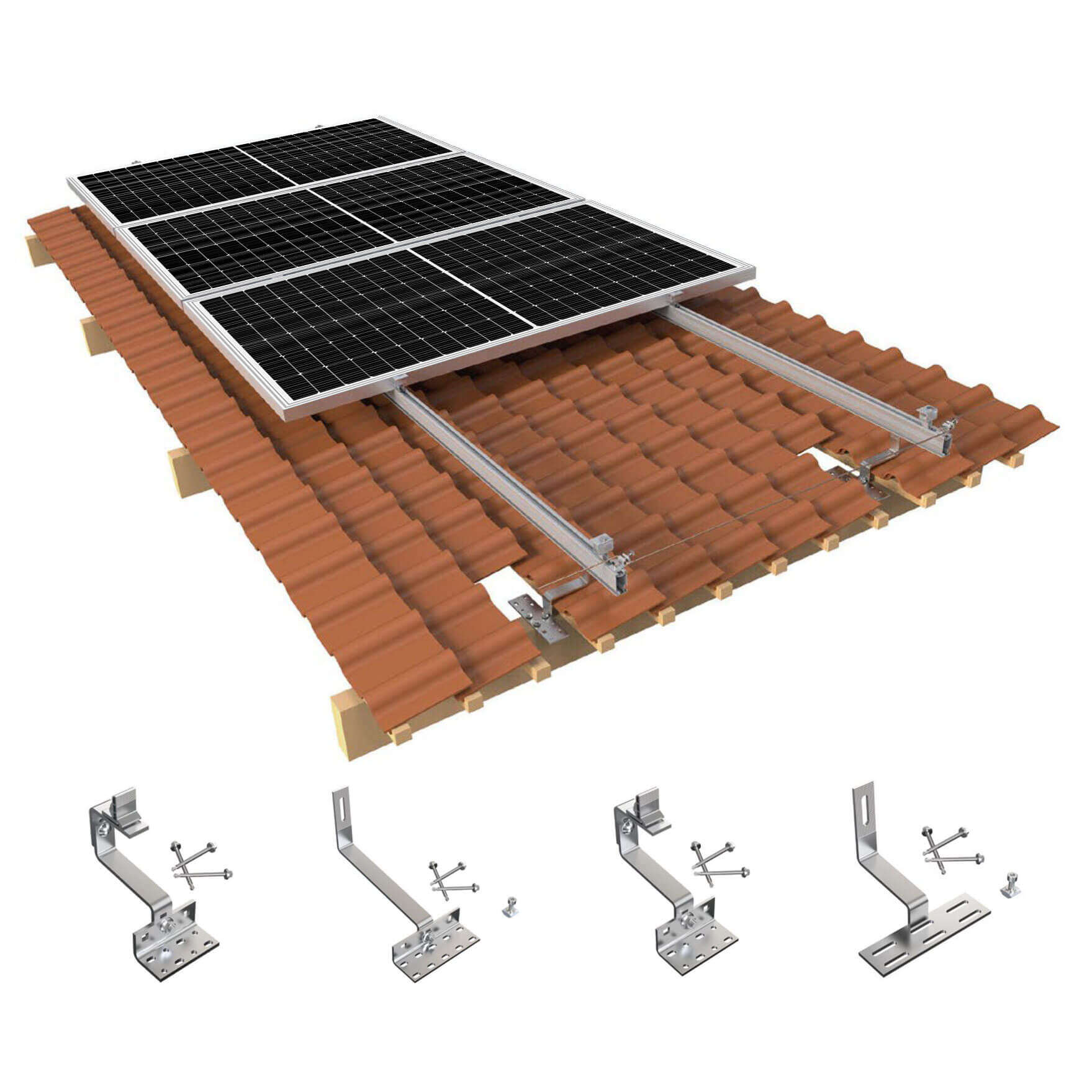

10 roof mount accessories
