Neexgent NXS-48 5.12-40.96kWh Stackable Lifepo4 Home Energy Storage Battery

Model	NXS-48
Type	Stackable LiFePO4 module
Capacity	5.12-40.96kWh
Power	5kw-10kw
Voltage	51.2v(48v)
Cycle Life	≥6000
Payment	T/T, L/C,Western Union
Warranty	12-year product & 30-year power warranty

CE/ IEC62619 / UL1973 / UL9540A / UN38.3

NXS-48 stackable lifepo4 storage battery certificates

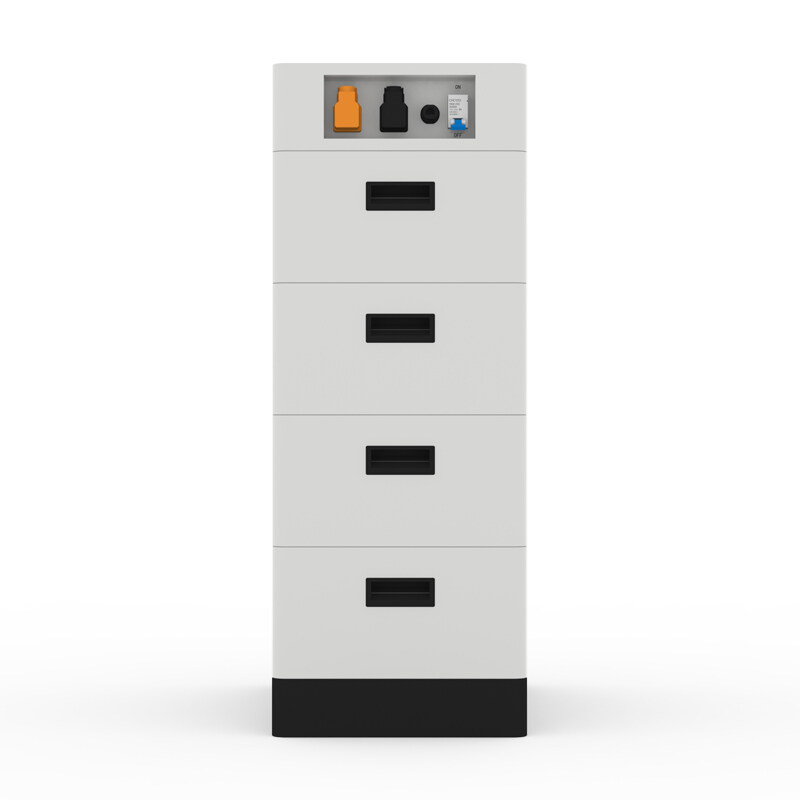

stackable lifepo4 battery pack

The NXS-48 series LiFePO4 battery is a reliable solar battery storage solution designed for home energy storage and commercial backup power. With safe lithium iron phosphate (LFP) technology, intelligent BMS protection, and a durable rack-mounted design, the NXS-48 delivers long-lasting performance and high efficiency for renewable energy systems.

Product Features

Max Continuous power 10kw
Standard warranty: 12 years
Peak power 12kw@30S
Easy installation with modular and stacked design, just plug and play
Real-time monitoring of battery charging and discharging, online system updates and maintenance
Excellent safety of cobalt free LiFePO4 battery
Latest LFP technology: >6000 cycles @ 80% DOD, 25 °C
Remote firmware upgrade
Independent BMS system for each module
Compatible with most popular inverter models (more than 15) on the market

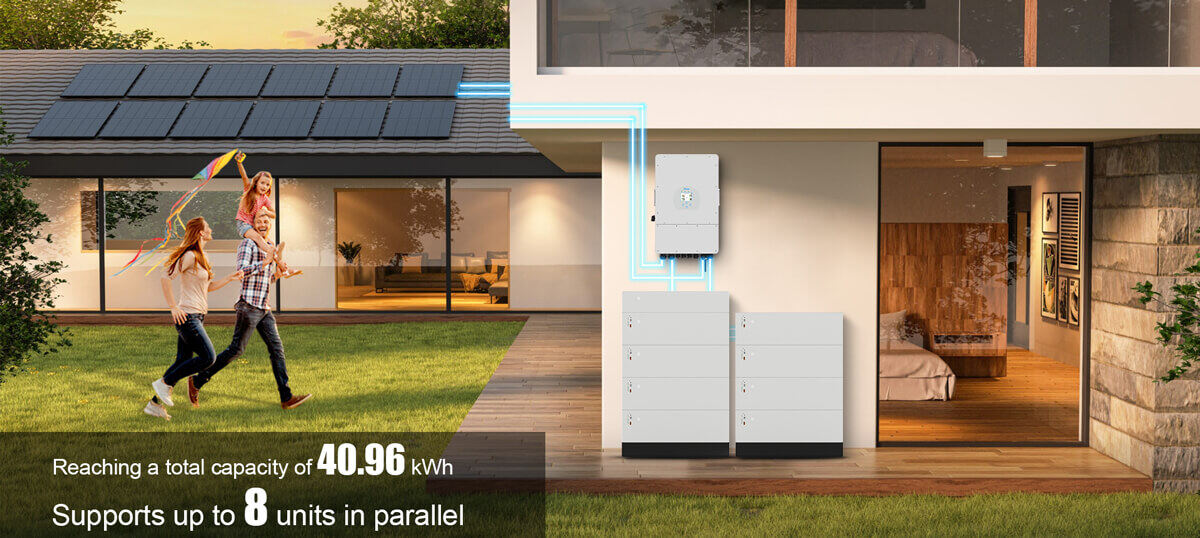

Stack up to 8 batteries (8*5.12kWh, max capacity: 40.96kWh)

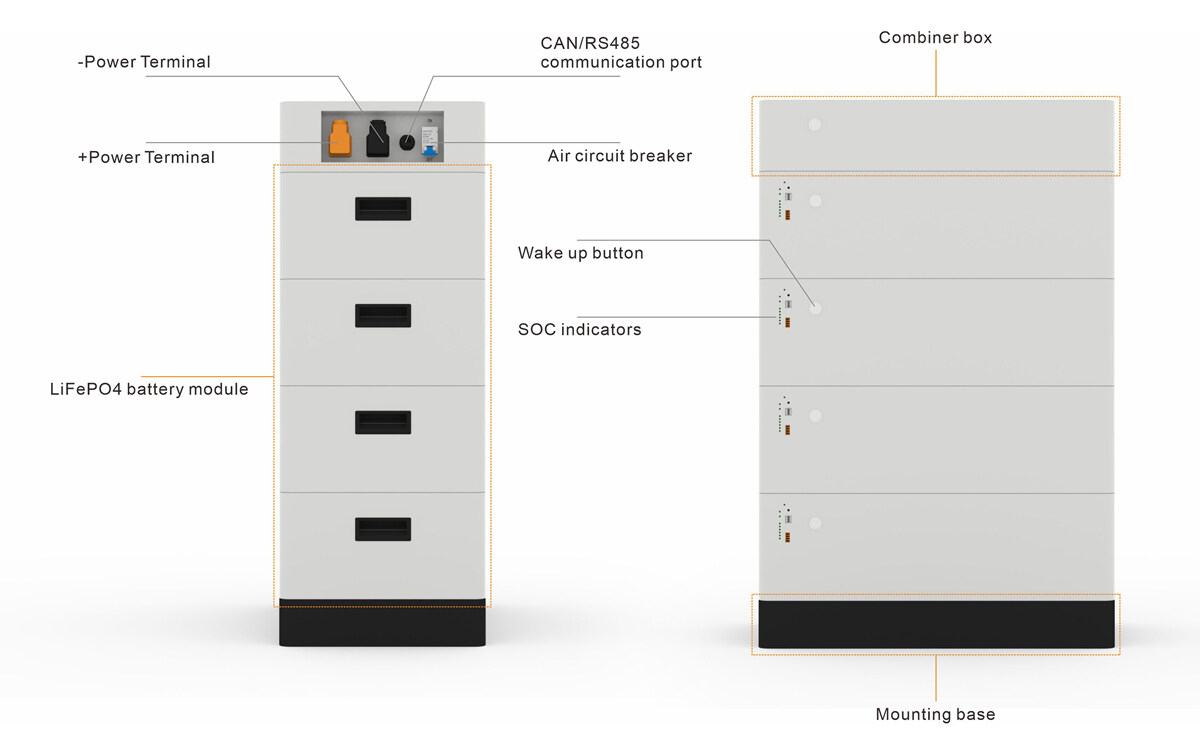

10kw power supply

5kw power supply

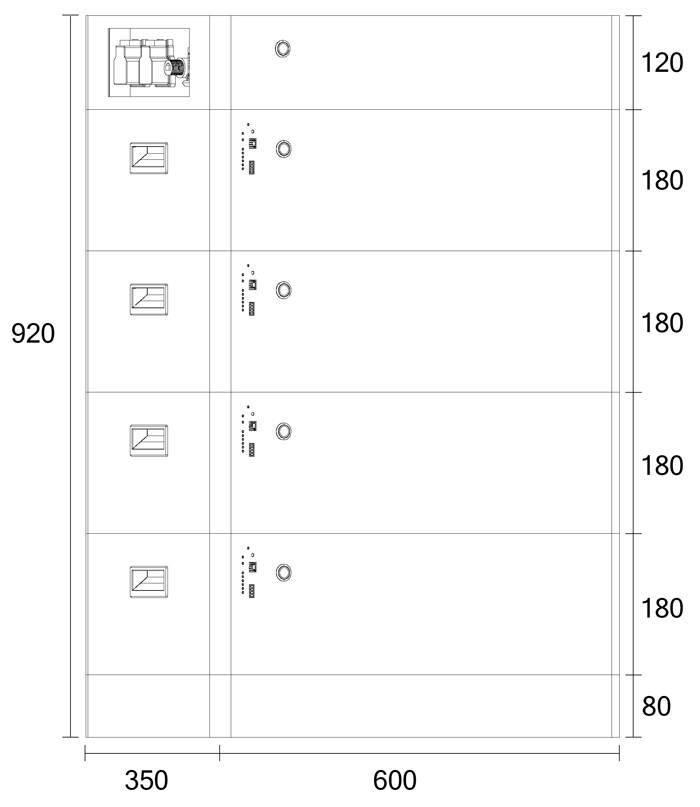

Unit: mm

stackable lifepo4 storage battery size

Item	Battery Model: NXS-48
Number of Modules	1	2	3	4	5	6	7	8
Energy Capacity (kWh)	5.12	10.24	15.36	20.48	25.6	30.72	35.84	40.96
Usable Capacity (kWh)	4.91	9.83	14.75	19.66	24.58	29.49	34.41	39.32
Max. Output Power	5 kW	10 kW	10 kW	10 kW	10 kW	10 kW	10 kW	10 kW
Dimension (W×D×H, mm)	600×350×380	600×350×560	600×350×740	600×350×920	600×350×1100	600×350×1280	600×350×1460	600×350×920∥600×350×800
Weight (kg)	62	112	162	212	262	312	362	412
Performance
Cycle Life	≥6000 cycles (25 ℃)
Max. Charge Current	50A	75A	100A	125A	150A	175A	200A	200A
Max. Discharge Current	100A	200A	200A	200A	200A	200A	200A	200A
General
Battery Type	Cobalt-free Lithium Iron Phosphate (LFP)
Nominal Voltage	51.2 V
Operating Voltage Range	44.8 – 56.8 V
IP Protection	IP65
Installation Location	Indoor or outdoor without direct sunlight
Installation Mode	Floor installation, stackable
Operating Temperature	Discharge: -20~60 ℃; Charge: 0~50 ℃
Features
BMS Monitoring Parameters	SOC, System voltage, Current, Cell voltage, Cell temperature, PCBA temperature, SOH
Communication Port	CAN / RS485 / BLE
Warranty	12 years (25 ℃)

* Variations in dimensions and weights may occur due to production batches.
