Type |
Mono solar panels |
|
Max.Power |
400W |
|
Output Voltage |
EU And US Standard |
|
Lead Time |
10 Days |
|
Payment |
T/T, L/C,Western Union |
|
Warranty |
25 Years |
Comprehensive Certificates
●IEC61215,1EC61730
●IS09001:2015 Quality management systems
●IS045001:Environmental management systems
●IS045001:2018 Occupational health and safety

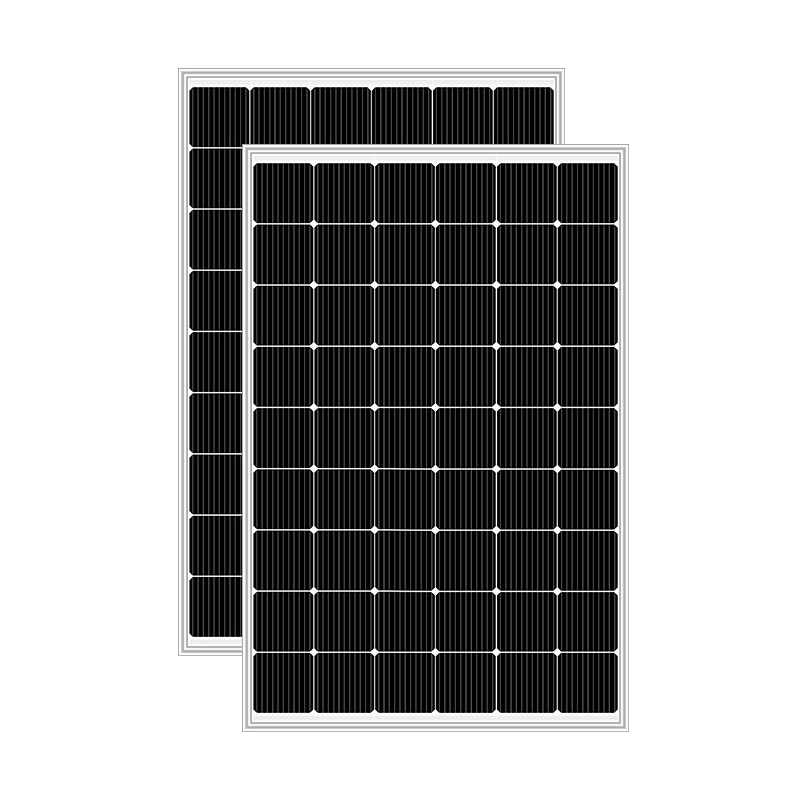

Effortlessly harnessing clean, noise-free energy, the NG400M Neexgent solar panel is tailored for cabins, campers,
RVs, and boats. Equipped with high-efficiency silicon solar cells, it also features an IP68-rated junction box for
marine applications. The corrosion-resistant aluminum frame ensures extended outdoor durability, enhancing the
panel's overall lifespan.
Key Features:
Performance Highlights:
Utilizing solar panels maximizes sunlight utilization, leading to reduced energy costs and prolonged access to free energy.











Tags:


|
Electrical Parameters at (STC) |
|
|
Module |
NG400M |
|
Power(W) |
400W |
|
Module Efficiency(%) |
20.70% |
|
Voltage at Pmax(Vmp) |
30.78 |
|
Current at Pmax(Imp) |
13.00 |
|
Open Circuit Voltage(Voc) |
37.02 |
|
Short Circuit Current(Isc) |
13.78 |
|
Power Tolerance(w) |
士3% |
|
Mechanical Parameters |
|
|
Solar Cell(Type/Size) |
MONO(182mm) |
|
Solar Cells Number |
54Pcs(6x9) |
|
Dimension |
1725x1134x35mm |
|
Weight |
21.30Kg/Pcs |
|
Tempered Glass |
3.2 mm High Permeability Coated |
|
Frame |
Anodized aluminum alloy |
|
Junction Box |
IP67.3* bypass diode |
|
Cable |
4.0mm2 (+)1000mm/(-)1000mm |
|
Connector |
Original MC4/Compatible MC4 |
|
Mechanical Load |
Front 5400PA/back 2400PA |
|
Packing |
|
|
Module Type |
NG400M-32 |
|
Carton Size |
1745x1160x85mm |
|
Number |
2Pcs/Ctn |
|
Weight |
43Kg/Ctn |
|
Volume |
0.172Cbm/Ctn |
|
20GP Container |
340Pcs |
|
40HQ Container |
810Pcs |
