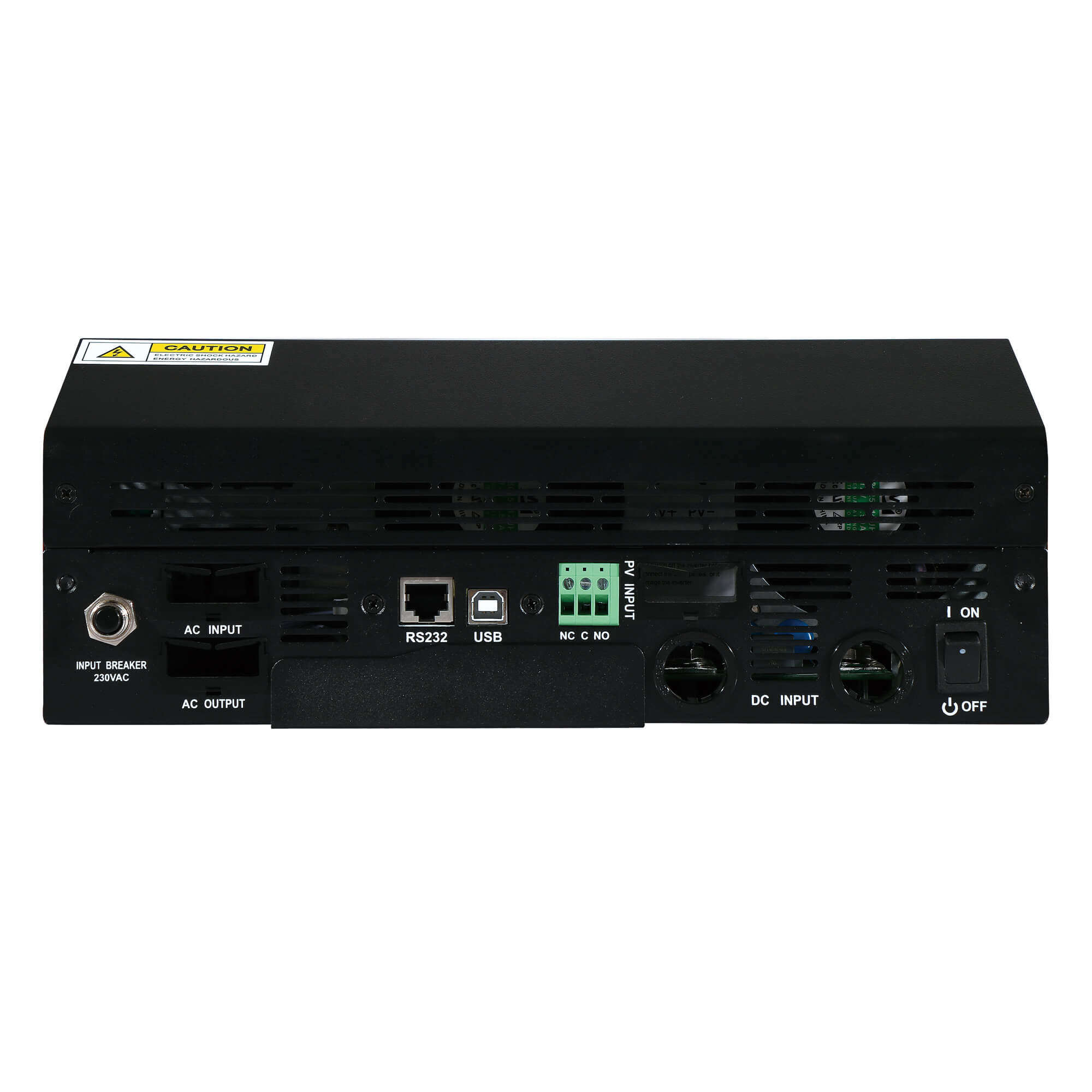

Neexgent Hybrid Solar Inverter 48v Battery With Parallel Operation Mppt With Or Solar Inverter Without Battery

Type	Hybrid solar inverter
Max.Power	5KW
Output Voltage	EU And US Standard
Certificate	PSE, FCC, CE, UN38.3, Msds, UL, SAA And ROHS
Lead Time	10 Days
Payment	T/T, L/C,Western Union
Warranty	25 Years

This versatile inverter/charger combines the functions of an inverter, solar charger, and battery charger,

providing seamless power support in a compact, portable size. Its intuitive LCD display facilitates

user-configurable settings, including battery charging current, AC/solar charger priority, and acceptable

input voltage based on specific applications.

Product Features:

High-efficiency pure sine wave inverter (Power Factor = 1); Broad PV input range (120Vdc-450Vdc)
80A MPPT SCC; Intelligent 3-stage 80A AC battery charger.
Capable of surging to twice the continuous power for 5 seconds to handle motor loads.
Intelligent functionality allows prioritization between utility and solar inputs.
Wide utility input range (90Vac-280Vac) ensures operation even in challenging grid conditions.
Field-serviceable with replaceable boards and spare parts.
Monitor, troubleshoot, or communicate via USB/RS 232.
Easily configured into a compact, wall-mounted system.
This series of inverters can operate directly from solar power without the need for batteries.
Supports parallel operation with up to nine units.

inverter for solar panel solar inverters for sale best solar inverter solar inverter kit

Tags:

Technical Specifications:

Model	NGX5032
PHASE	1-phase in/1 phase out
Max. PV INPUT POWER	5000W
Rated Output Power	5000W
Maximum Charging Power	4800W
GRID TIE OPERATION
PV INPUT (DC)
Nominal DC Voltage/Max. DC Voltage	720 VDC/900 VDC
Start-up Voltage/lnitial Feeding Voltage	225 VDC/250 VDC
MPP Voltage Range	250 VDC-850 VDC
Number of MPP Trackers	2/2x10A
Maximum Input Current	2/2x10A
GRID OUTPUT (AC)
Nominal Output Voltage	208/220/230/240VAC
Output Voltage Range	184-265 VAC*
Nominal Output Current	21A
OFF GRID OPERATION
AC INPUT
AC start-up Voltage	120-140 VAC/180 VAC
Auto Restart Voltage	120-140 VAC/180 VAC
Acceptable Input Voltage Range	170-280 VAC
Max. AC Input Current	21A
PV INPUT (DC)
Max. DC Voltage	900 VDC
MPP Voltage Range	250 VDC-850 VDC
Number of MPPTrackers/Max. Input Current	2/2x10A
BATTERY Mode Output (AC)
Nominal Output Voltage	202/208/220/230/240 VAC
Output Waveform	Pure Sine Wave
Efficiency (DC to AC)	93%
HYBRID OPER/EON
PV INPUT (DC)
Nominal DC Voltage/Max. DC Voltage	720 VDC/900 VDC
Start-up Voltage/lnitial Feeding Voltage	225 VDC/ 250 VDC
MPP Voltage Range	250 VDC- 850 VDC
Number of MPP Trackers/Max. Input Current	2/2x10A
GRID OUTOUT (AC)
Nominal Output Voltage	202/208/220/230/240 VAC
Output Voltage Range	184-264.5 VAC*
Nominal Output Current	21A
AC INPUT
AC Start-up Voltage/Auto Restart Voltage	120-140 VAC/180 VAC
Acceptable Input Voltage Range	170-280 VAC
Max. AC Input Current	30A
BATTERY MODE OUTPUT (AC)
Nominal Output Voltage	202/208/220/230/240 VAC
Efficiency (DC to AC)	93%
GENERAL
PHYSICAL
Dimension, DxWxH (mm)	204.2 x 460x 600
Net weight (kgs)	29
ENVIRONMENT
Humidity	0 -90%RH
Operating Temperature	-10 to 55 ° C
Altitude	0-1000 m**
