Type |
Mono solar panels |
|
Max.Power |
450W |
|
Output Voltage |
EU And US Standard |
|
Lead Time |
10 Days |
|
Payment |
T/T, L/C,Western Union |
|
Warranty |
25 Years |
Comprehensive Certificates
●IEC61215,1EC61730
●IS09001:2015 Quality management systems
●IS045001:Environmental management systems
●IS045001:2018 Occupational health and safety

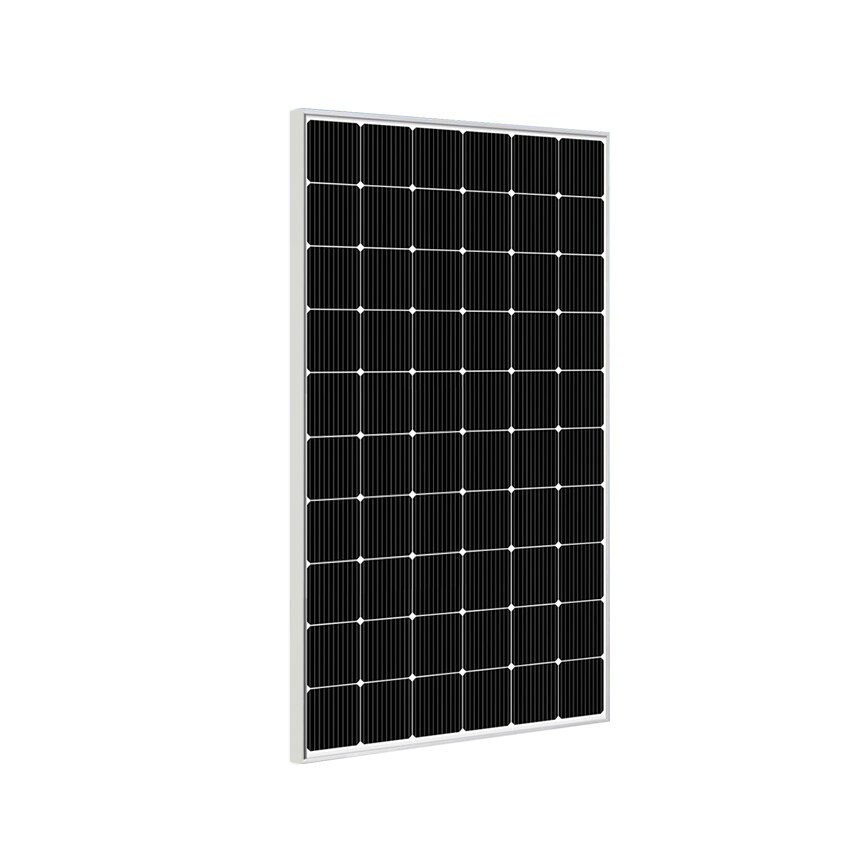

From homes to large-scale government projects, NG450M mono solar panels deliver versatile solar solutions.
With high efficiency and a robust 10-year warranty, they ensure reliable performance for over 25 years.
Main Features:
INTRODUCTION











Tags:

|
Electrical Parameters at (STC) |
|
|
Module |
NG450M |
|
Power(W) |
450W |
|
Module Efficiency(%) |
20.80% |
|
Voltage at Pmax(Vmp) |
34.20 |
|
Current at Pmax(Imp) |
13.16 |
|
Open Circuit Voltage(Voc) |
41.04 |
|
Short Circuit Current(Isc) |
13.95 |
|
Power Tolerance(w) |
士3% |
|
Mechanical Parameters |
|
|
Solar Cell(Type/Size) |
MONO(182mm) |
|
Solar Cells Number |
60Pcs(6x10) |
|
Dimension |
1909x1134x35mm |
|
Weight |
22.90Kg/Pcs |
|
Tempered Glass |
3.2 mm High Permeability Coated |
|
Frame |
Anodized aluminum alloy |
|
Junction Box |
IP67.3* bypass diode |
|
Cable |
4.0mm2 (+)1000mm/(-)1000mm |
|
Connector |
Original MC4/Compatible MC4 |
|
Mechanical Load |
Front 5400PA/back 2400PA |
|
Packing |
|
|
Module Type |
NG450M-32 |
|
Carton Size |
1930x1160x85mm |
|
Number |
2Pcs/Ctn |
|
Weight |
46Kg/Ctn |
|
Volume |
0.190Cbm/Ctn |
|
20GP Container |
316Pcs |
|
40HQ Container |
736Pcs |
