This is a highly versatile deep-cycle battery built on patented Lithium Iron Phosphate (LiFePO4) chemistry.
The features a built-in battery management system (BMS) that keeps the battery running at peak performance while preventing overheating, overcharging, and maximizing cell cycle life.
24v 50Ah Lifepo4 Battery Pack:
● Vertical industry integration ensures more than 6000 cycles with 90% DoD
● Compact and fashionable design fits in your sweet home environment
● Modular design gives the end customers the power of choice of capacity
● Compatible with most of the available Hybrid inverters
● Simple buckle fixing minimize the installation time and cost
24V Lithium Iron Phosphate ( LiFePO4 )Battery is the popular choice for users for its many advanced features.
24V LiFePO4 battery pack are popular for their fast charging ability, high energy density, conversion efficiency, environment friendliness, high cycle times, good high temperature performance and many more useful features.
Product Features:
● Long cycle life. More than 6000 times (charge and discharge at 1C, 80% capacity retention after 6000 cycles);
● Compact in size and light in weight. 1/3 smaller in size, 2/3 lighter in weight than lead acid battery.
● High safety: No fire and explosion in overcharge test; No explosion, no fire under collision, over charged or short circuit.
● Good charging and discharging performance. 3C continous discharge and 10C burst.
● Full green and . All raw material of the batteries are environmental-friendly,
● Wide working temperature range: From -20ºC to 60ºC, extremely cold and hot weather will not affect its performance.
● Bar Code management system. All data is managed by system, we can trace the cell information and match every pack with closest data.
● Produced with automatic equipments.
|
Model NO. |
NG04S50A |
|
Nominal Capacity(AH) |
50AH |
|
Nominal Voltage(V) |
24V |
|
Standard Charge Current(A) |
0.5C |
|
Maximum Charge Current(A) |
1C |
|
Impedance(Ω) |
0.2mΩ |
|
Max. Discharge Current(A) |
2C |
|
Max.Charge Voltage(V) |
3.65V |
|
Discharge Cut-off Voltage(V) |
2.5V |
|
Charge Working Temp.(ºC) |
0~55ºC |
|
Discharge Working Temp.(ºC) |
-30~75ºC |
|
Cycle Life |
4000 Cycles |

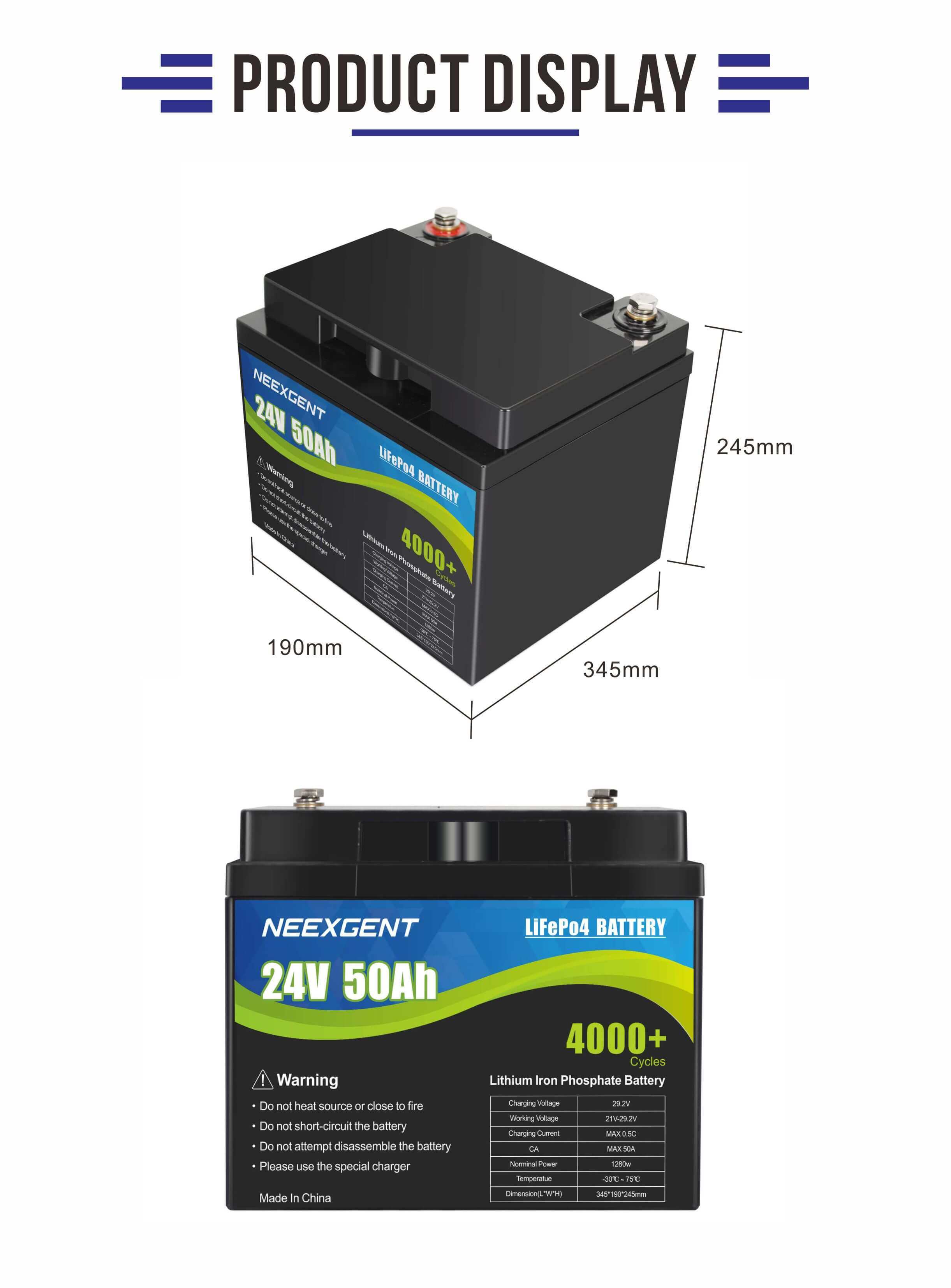

| Size | 345*190*245mm |
Applications include:
• caravan
• The sea,
• Golf cart
• baby carrier
• Solar storage
• Remote monitoring
• Switch applications, etc
