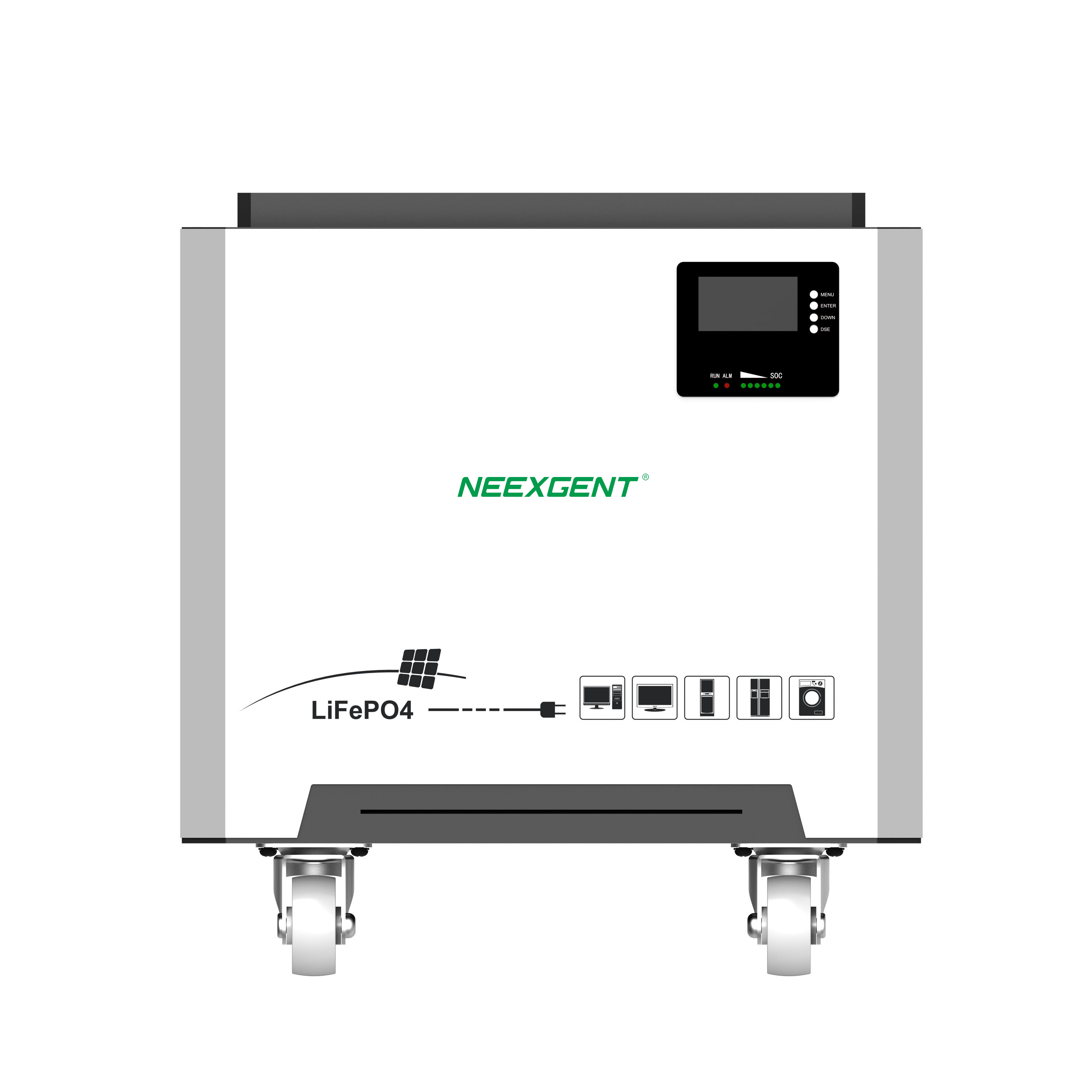

Neexgent 25.6v 200ah Lithium Ion Battery 5kwh Lifepo4 Batteries Tower Wall Design With Lcd And Smart Bms

NE2500 is a new type of lithium battery energy storage system. Energy storage is configured differently depending on the needs of the home, the battery capacity is 5.12kWh to 12.8kWh. Very suitable for home emergency power storage as solar battery.



* Custom capacity is acceptable.

+ High-Efficient Energy Storage Batteries.
+ Modular design providing escort in emergency.
+ The safest lithium solar battery material (LFP) battery
+ Integrated battery management system (BMS)
+ Battery system designed for PV household application
+ Longer cycle life ≥4000 cycles

lithium ion battery 25.6v 200ah25.6v lithium ion battery 200ahbattery 25.6v 200ah solar 5kwh

Tags:



MODEL

NE2500-25200

Nominal Voltage

25.6V

Nominal Capacity

200Ah

Energy

5120Wh

Communication

CAN2.0/RS232/RS485

Resistance

≤50 mΩ @ 50% SOC

Efficiency

≤96%

Recommended Charge Current

100A

Maximum Continuous Discharge Current

100A

Maximum load power

2.5KW

Recommended Charge Voltage

28.8V

BMS Charge Cut-Off Voltage

<29.2 V (3.65V/Cell)

Reconnect Voltage

>28.8 V (3.6V/Cell)

Balancing Voltage

<28.8 V (3.6V/Cell)

Balancing open voltage

27.6V (3.45V/Cell)

Recommended Low Voltage Disconnect

22V (2.75V/Cell)

BMS Discharge Cut-Off Voltage

>20.0V (2s) (2.5V/Cell)

Reconnect Voltage

>22.0V (2.75V/Cell)

Discharge Temperature

-4 ~ 131 ºF (-20 ~ 55 ºC)

Charge Temperature

-4 ~ 113 ºF (0 ~ 45 ºC)

Storage Temperature

23 ~ 95 ºF (-5 ~ 35 ºC)

BMS High Temperature Cut-Off

149 ºF (65 ºC)

Reconnect Temperature

131 ºF (55 ºC

Dimension (L x W x H

540*450*473mm

Terminal Type

DIN POST

Terminal Torque

80 ~ 100 in-lbs (9 ~ 11 N-m)

Case Material

SPPC

Enclosure Protection

IP20

Certifications

CE (battery) UN38.3 (battery) UL1642 & IEC62133 (cells)

Shipping Classification

UN 3480, CLASS 9
