• Pure sine wave output
• Self-consumption and deed in to the grid
• Programmable supply priority for PV, Battery or Grid
• User-adjustable battery charging current suits different types of batteries
• Programmable multiple operation modes: Grid-tie,Off-grid and grid-tie with backup
• Built-in timer for various mode of on/off operation
• Multiple communication for USB.RS232,Modbus and SNMP
• Monitoring software for rel-time status display and control
• Parallel operation up to 6 units for 10KW
• Pure sine wave output
• Self-consumption and deed in to the grid
• Programmable supply priority for PV, Battery or Grid
• User-adjustable battery charging current suits different types of batteries
• Programmable multiple operation modes: Grid-tie,Off-grid and grid-tie with backup
• Built-in timer for various mode of on/off operation
• Multiple communication for USB.RS232,Modbus and SNMP
• Monitoring software for rel-time status display and control
• Parallel operation up to 6 units for 10KW
Tags:
Technical Specifications:
|

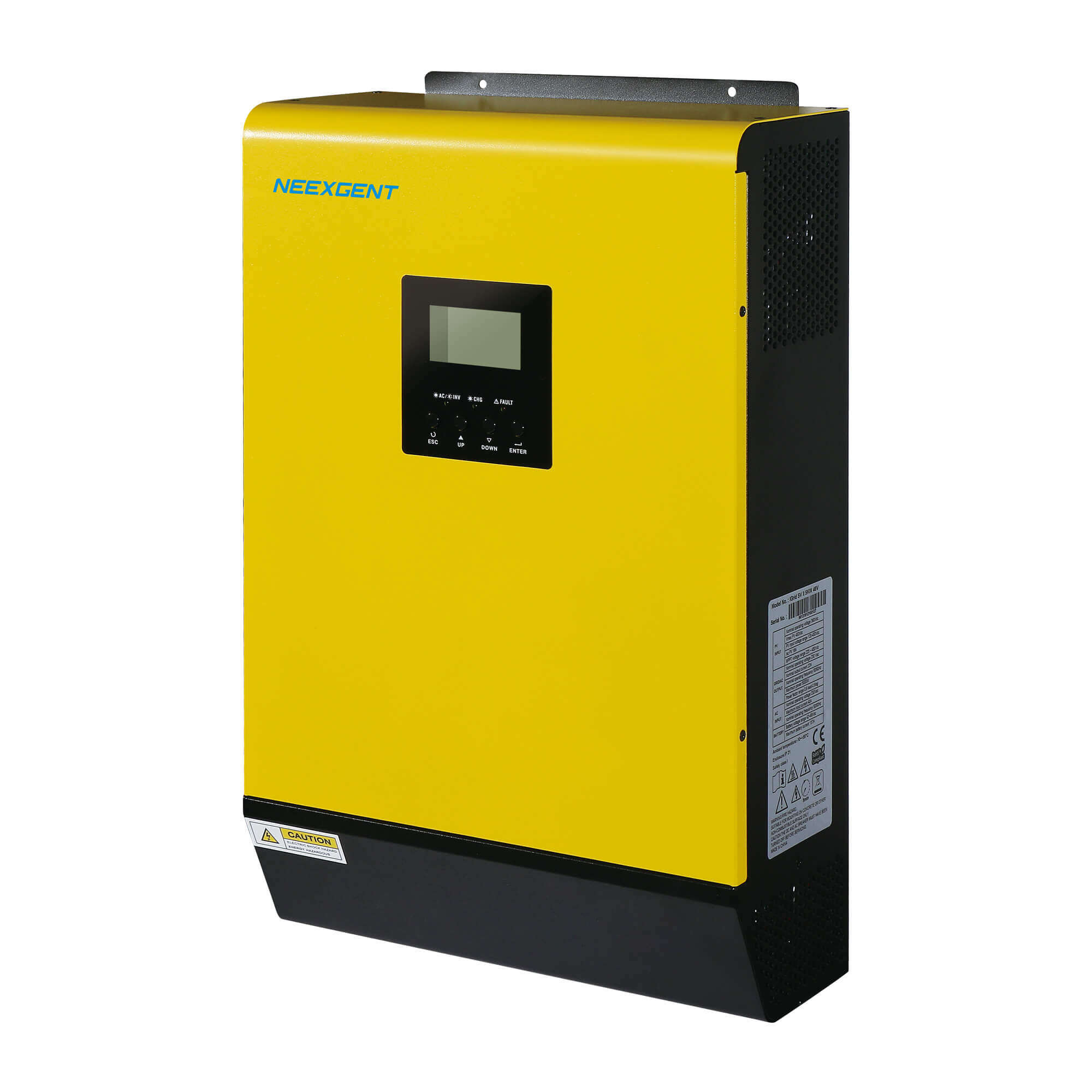

Model |
NGX5032 |
|
PHASE |
1-phase in/1 phase out |
|
Max. PV INPUT POWER |
5000W |
|
Rated Output Power |
5000W |
|
Maximum Charging Power |
4800W |
|
GRID TIE OPERATION |
|
|
PV INPUT (DC) |
|
|
Nominal DC Voltage/Max. DC Voltage |
720 VDC/900 VDC |
|
Start-up Voltage/lnitial Feeding Voltage |
225 VDC/250 VDC |
|
MPP Voltage Range |
250 VDC-850 VDC |
|
Number of MPP Trackers |
2/2x10A |
|
Maximum Input Current |
2/2x10A |
|
GRID OUTPUT (AC) |
|
|
Nominal Output Voltage |
208/220/230/240VAC |
|
Output Voltage Range |
184-265 VAC* |
| Nominal Output Current | 21A |
|
OFF GRID OPERATION |
|
|
AC INPUT |
|
|
AC start-up Voltage |
120-140 VAC/180 VAC |
|
Auto Restart Voltage |
120-140 VAC/180 VAC |
|
Acceptable Input Voltage Range |
170-280 VAC |
| Max. AC Input Current | 21A |
|
PV INPUT (DC) |
|
|
Max. DC Voltage |
900 VDC |
|
MPP Voltage Range |
250 VDC-850 VDC |
|
Number of MPPTrackers/Max. Input Current |
2/2x10A |
|
BATTERY Mode Output (AC) |
|
|
Nominal Output Voltage |
202/208/220/230/240 VAC |
|
Output Waveform |
Pure Sine Wave |
|
Efficiency (DC to AC) |
93% |
| HYBRID OPER/EON | |
|
PV INPUT (DC) |
|
|
Nominal DC Voltage/Max. DC Voltage |
720 VDC/900 VDC |
|
Start-up Voltage/lnitial Feeding Voltage |
225 VDC/ 250 VDC |
|
MPP Voltage Range |
250 VDC- 850 VDC |
|
Number of MPP Trackers/Max. Input Current |
2/2x10A |
|
GRID OUTOUT (AC) |
|
|
Nominal Output Voltage |
202/208/220/230/240 VAC |
| Output Voltage Range | 184-264.5 VAC* |
|
Nominal Output Current |
21A |
|
AC INPUT |
|
|
AC Start-up Voltage/Auto Restart Voltage |
120-140 VAC/180 VAC |
| Acceptable Input Voltage Range | 170-280 VAC |
| Max. AC Input Current | 30A |
|
BATTERY MODE OUTPUT (AC) |
|
|
Nominal Output Voltage |
202/208/220/230/240 VAC |
|
Efficiency (DC to AC) |
93% |
| GENERAL | |
|
PHYSICAL |
|
|
Dimension, DxWxH (mm) |
204.2 x 460x 600 |
|
Net weight (kgs) |
29 |
|
ENVIRONMENT |
|
|
Humidity |
0 -90%RH |
|
Operating Temperature |
-10 to 55 ° C |
|
Altitude |
0-1000 m** |
